Other Hudson Sharp machines include Roto and oil ink presses, Automatic Roll Winders, Waxers, Embossers, Laminators, Folders, Core Winders, Crepers and Campbell Wrappers.

•    High speed printing up to 1000 ft. per minute

•    Standard presses with two to six colors

•    Prints 20" to 50" widths, repeats 12" to 36"

•    Continuously agitated splash-proof ink fountains

•    Hydraulic color throw-outs

•    Prints 1 mil. film to heavy weight papers

•    Anilox type transfer rolls

•    Automatic tension web controls for accurate print register and repeats

•    Constant print repeats increase operating efficiency of automatic bag and packaging machines

•    Handles unevenly wound rolls or webs of varying caliper

•    High speed surface driers of advanced design between colors and before rewinding

•    Flying splice unwind and rewind for continuous operation, optional

•    Vibrationless, heavy duty cast iron construction

•    Anti-friction bearings thru-out

•    Easiest of all presses to operate holds register at all speeds

•    Reduces down-time and material waste to the minimum

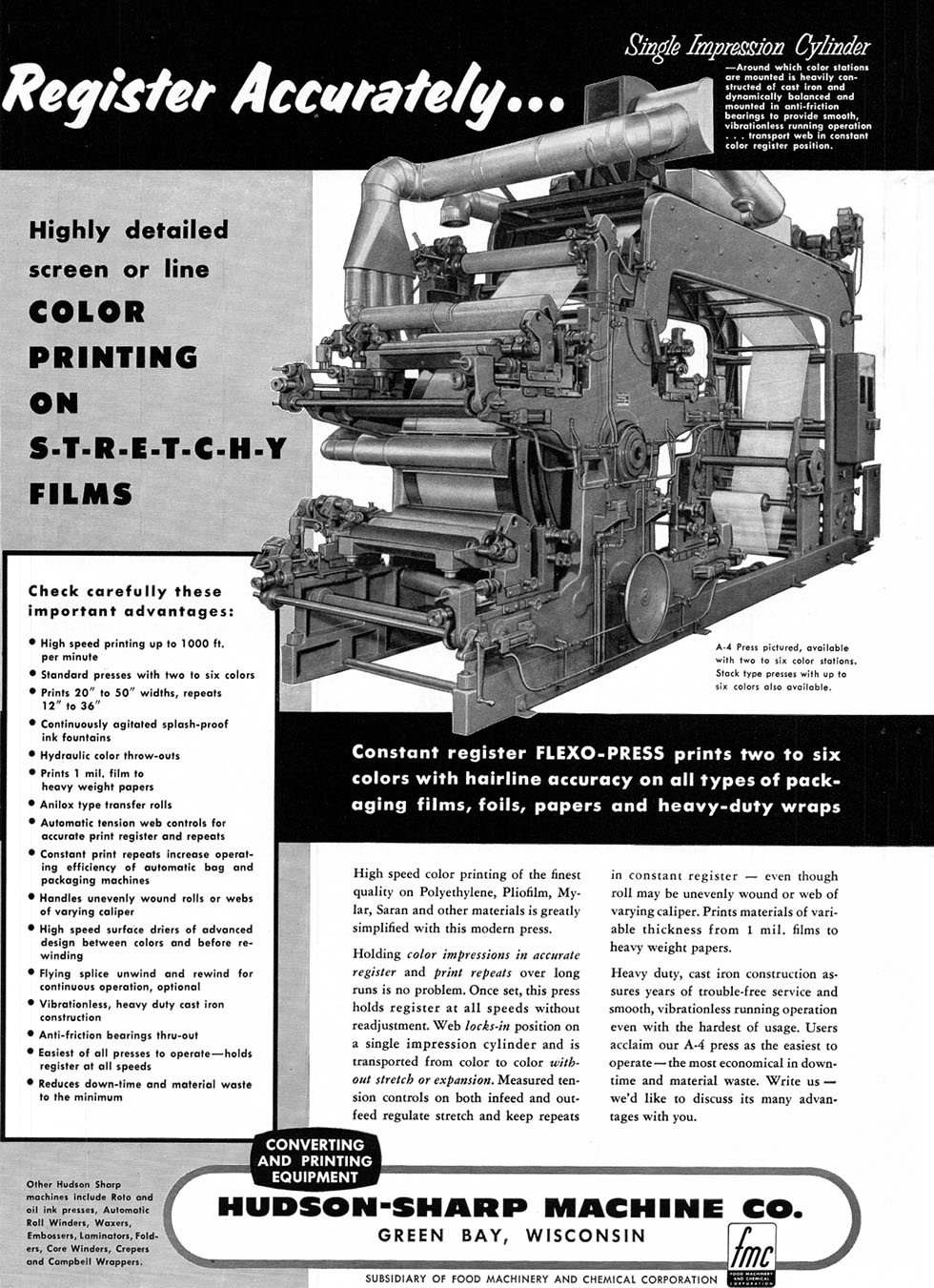

A-4 Press pictured, available with two to six color stations. Stack type presses with up to six colors also available.

Constant register FLEXO-PRESS prints two to six colors with hairline accuracy on all types of packaging films, foils, papers and heavy-duty wraps

High speed color printing of the finest quality on Polyethylene, Pliofilm, Mylar, Saran and other materials is greatly simplified with this modem press.

Holding color impressions in accurate register and print repeats over long runs is no problem. Once set, this press holds register at all speeds without readjustment. Web locks-in position on a single impression cylinder and is transported from color to color without stretch or expansion. Measured tension controls on both infeed and out-feed regulate stretch and keep repeats

in constant register even though roll may be unevenly wound or web of varying caliper, Prints materials of variable thickness from 1 mil. films to heavy weight papers.

Heavy duty, cast iron construction assures years of trouble-free service and smooth, vibrationless running operation even with the hardest of usage. Users acclaim our A-4 press as the easiest to operate- the most economical in downtime and material waste. Write us  we'd like to discuss its many advantages with you.

CONVERTING PRINTING EQUIPMENT

-SHARP MACHINE C4

GREEN BAY, WISCONSIN

SUBSIDIARY OF FOOD MACHINERY AND CHEMICAL CORPORATION

Register Accut

Single Impression Cylinder

Around which color stations are mounted is heavily constructed of cast iron and dynamically balanced and mounted in anti-friction bearings to provide smooth, vibrationless running operation . . . transport web in constant color register position.

Check carefully these important advantages! ^•
