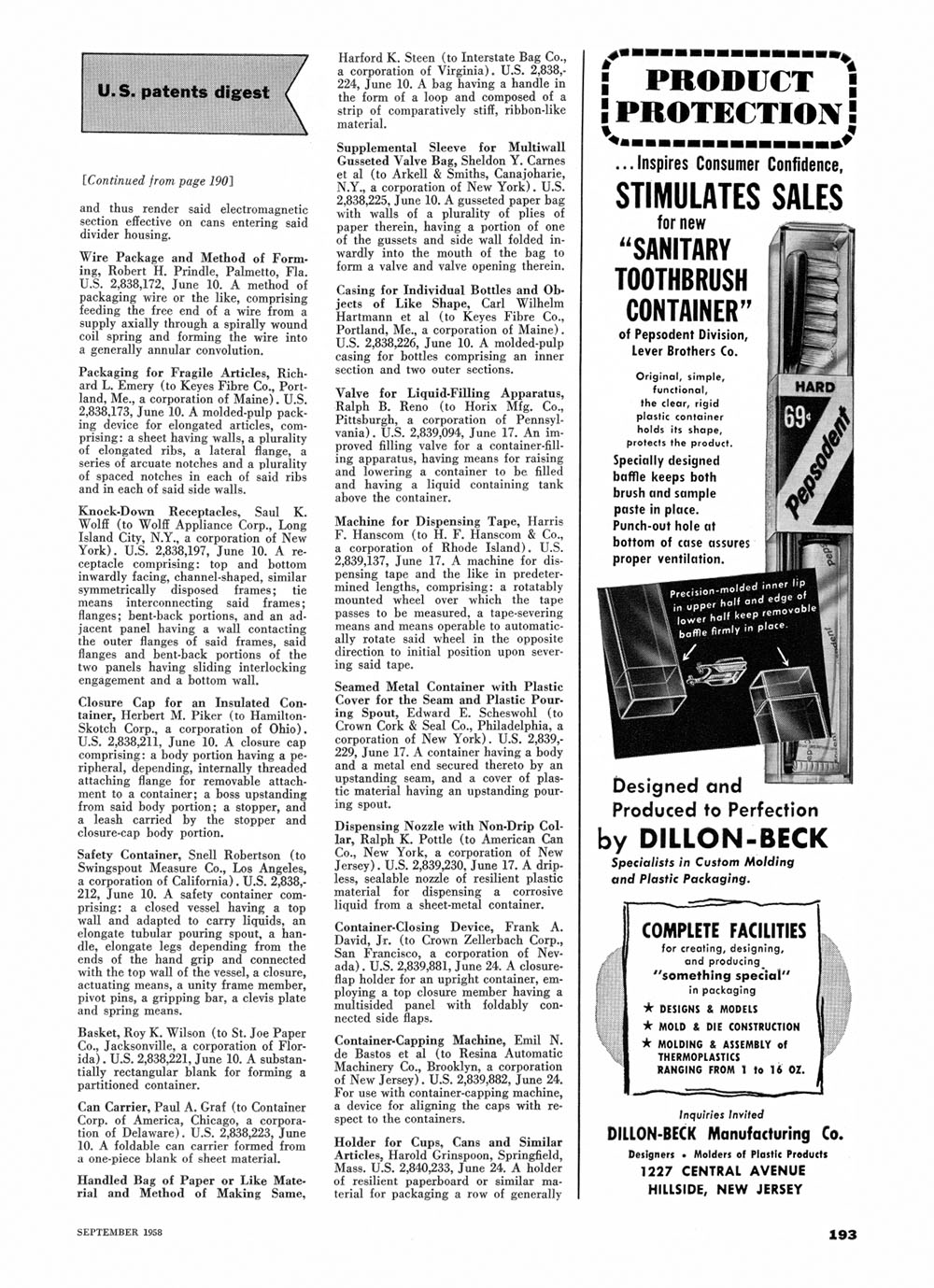

U.S. patents digest

[Continued from page 190]

and thus render said electromagnetic section effective on cans entering said divider housing,

Wire Package and Method of Forming, Robert H. Prindle, Palmetto, Fla. U.S. 2,838,172, June 10. A method of packaging wire or the like, comprising feeding the free end of a wire from a supply axially through a spirally wound coil spring and forming the wire into a generally annular convolution,

Packaging for Fragile Articles, Richard L. Emery (to Keyes Fibre Co., Portland, Me., a corporation of Maine). U.S. 2,838,173, June 10. A molded-pulp packing device for elongated articles, comprising: a sheet having walls, a plurality of elongated ribs, a lateral flange, a series of arcuate notches and a plurality of spaced notches in each of said ribs and in each of said side walls.

Knock-Down Receptacles, Saul K. Wolff (to Wolff Appliance Corp., Long Island City, N.Y., a corporation of New York). U.S. 2,838,197, June 10. A receptacle comprising: top and bottom inwardly facing, channel-shaped, similar symmetrically disposed frames; tie means interconnecting said frames; flanges; bent-back portions, and an adjacent panel having a wall contacting the outer flanges of said frames, said flanges and bent-back portions of the two panels having sliding interlocking engagement and a bottom wall.

Closure Cap for an Insulated Container, Herbert M. Piker (to Hamilton-Skotch Corp., a corporation of Ohio). U.S. 2,838,211, June 10. A closure cap comprising: a body portion having a peripheral, depending, internally threaded attaching flange for removable attachment to a container; a boss upstanding from said body portion; a stopper, and a leash carried by the stopper and closure-cap body portion.

Safety Container, Snell Robertson (to Swingspout Measure Co., Los Angeles, a corporation of California). U.S. 2,838,-212, June 10. A safety container comprising: a closed vessel having a top wall and adapted to carry liquids, an elongate tubular pouring spout, a handle, elongate legs depending from the ends of the hand grip and connected with the top wall of the vessel, a closure, actuating means, a unity frame member, pivot pins, a gripping bar, a clevis plate and spring means.

Basket, Roy K. Wilson (to St. Joe Paper Co., Jacksonville, a corporation of Florida) . U.S. 2,838,221, June 10. A substantially rectangular blank for forming a partitioned container,

Can Carrier, Paul A. Graf (to Container Corp. of America, Chicago, a corporation of Delaware). U.S. 2,838,223, June 10. A foldable can carrier formed from

a one-piece blank of sheet material.

Handled Bag of Paper or Like Material and Method of Making Same,

Harford K. Steen (to Interstate Bag Co., a corporation of Virginia). U.S. 2,838,-224, June 10. A bag having a handle in the form of a loop and composed of a strip of comparatively stiff, ribbon-like material.

Supplemental Sleeve for Multiwall Gusseted Valve Bag, Sheldon Y. Carnes et al (to Arkell & Smiths, Canajoharie, N.Y., a corporation of New York). U.S. 2,838,225, June 10. A gusseted paper bag with walls of a plurality of plies of paper therein, having a portion of one of the gussets and side wall folded inwardly into the mouth of the bag to form a valve and valve opening therein.

Casing for Individual Bottles and Objects of Like Shape, Carl Wilhelm Hartmann et al (to Keyes Fibre Co., Portland, Me., a corporation of Maine). U.S. 2,838,226, June 10. A molded-pulp casing for bottles comprising an inner section and two outer sections.

Valve for Liquid-Filling Apparatus, Ralph B. Reno (to Horix Mfg. Co., Pittsburgh, a corporation of Pennsylvania). U.S. 2,839,094, June 17. An improved filling valve for a container-filling apparatus, having means for raising and lowering a container to be filled and having a liquid containing tank above the container.

Machine for Dispensing Tape, Harris F. Hanscom (to H. F. Hanscom & Co., a corporation of Rhode Island). U.S. 2,839,137, June 17. A machine for dispensing tape and the like in predetermined lengths, comprising: a rotatably mounted wheel over which the tape passes to be measured, a tape-severing means and means operable to automatically rotate said wheel in the opposite direction to initial position upon severing said tape.

Seamed Metal Container with Plastic Cover for the Seam and Plastic Pouring Spout, Edward E. Scheswohl (to Crown Cork & Seal Co., Philadelphia, a corporation of New York). U.S. 2,839,-229, June 17. A container having a body and a metal end secured thereto by an upstanding seam, and a cover of plastic material having an upstanding pouring spout.

Dispensing Nozzle with Non-Drip Collar, Ralph K. Pottle (to American Can Co., New York, a corporation of New Jersey). U.S. 2,839,230, June 17. A dripless, sealable nozzle of resilient plastic material for dispensing a corrosive liquid from a sheet-metal container.

Container-Closing Device, Frank A. David, Jr. (to Crown Zellerbach Corp,, San Francisco, a corporation of Nevada) . U.S. 2,839,881, June 24. A closure-flap holder for an upright container, employing a top closure member having a multisided panel with foldably connected side flaps.

Container-Capping Machine, Emil N. de Bastos et al (to Resina Automatic Machinery Co., Brooklyn, a corporation of New Jersey). U.S. 2,839,882, June 24. For use with container-capping machine, a device for aligning the caps with respect to the containers.

Holder for Cups, Cans and Similar Articles, Harold Grinspoon, Springfield, Mass. U.S. 2,840,233, June 24. A holder of resilient paperboard or similar material for packaging a row of generally
