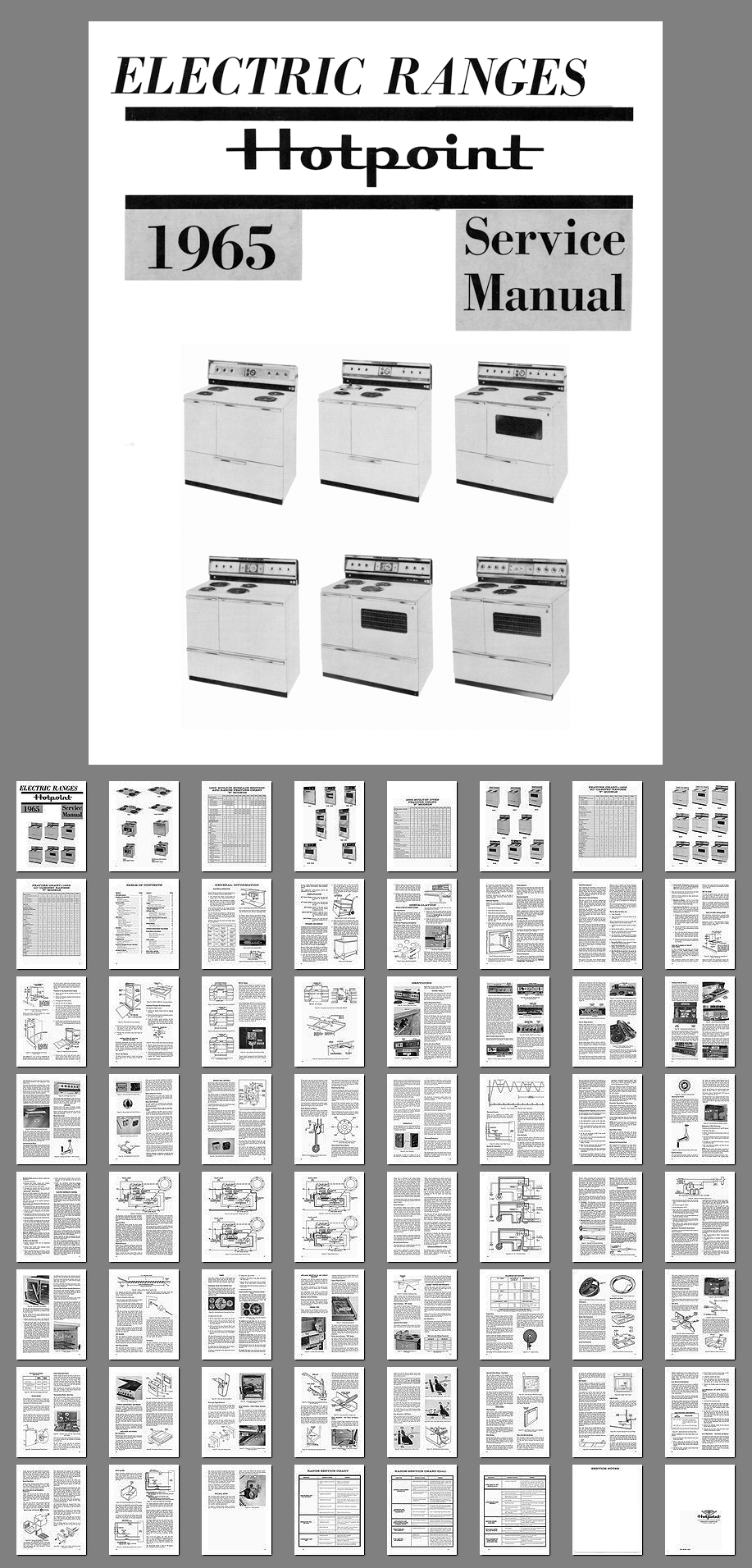

1965 Hotpoint Electric Range Service Manual


Published by Hotpoint in 1965-- Here is the comprehensive service manual to all 1965 Hotpoint Freestanding Ranges, Built-In Ovens and Cooktops.

Models include:
30" Freestanding Electric Range Models:
RB305 RB315 RB316 RB325 RB335 RB360 RB370 RB390

40" Freestanding Electric Range Models:
RC415 RC416 RC425 RC431 RC434 RC439 RC445 RC460 RC490

Built-In Cooktops Models:
RF17 RF19 RF20 RF28 RFX37 RF38 RF50 RU15 RUX37 RU38 RU48

Built-In Oven Models:
RJ16 RJ38 RJ40 RJ66 RJ70 RJ84 RJ88 RJ90 RL36 RL40 RL80

Major Sections Include:
FEATURE CHARTS
GENERAL INFORMATION
INSTALLATION
SERVICING
SWITCHES
INFINITE HEAT CONTROLS
THERMOSTATS
ELECTRIC SUPERMATIC UNIT CONTROL
AUTOMATIC ROAST
TIMERS
APPLIANCE RECEPTACLES AND
CIRCUIT BREAKERS
COOKING TOPS
CALROD® SURFACE AND OVEN UNITS
RANGE BODIES
STORAGE COMPARTMENT AND DRAWER
OVEN DOORS AND HINGING
OVEN LINERS
ROTA-GRILL MOTORS
RANGE SERVICE CHART

Number of Pages: 64
File Size: 44mb
Download Fee: $7.99

  Add 1965 Hotpoint Electric Range Service Manual to cart
