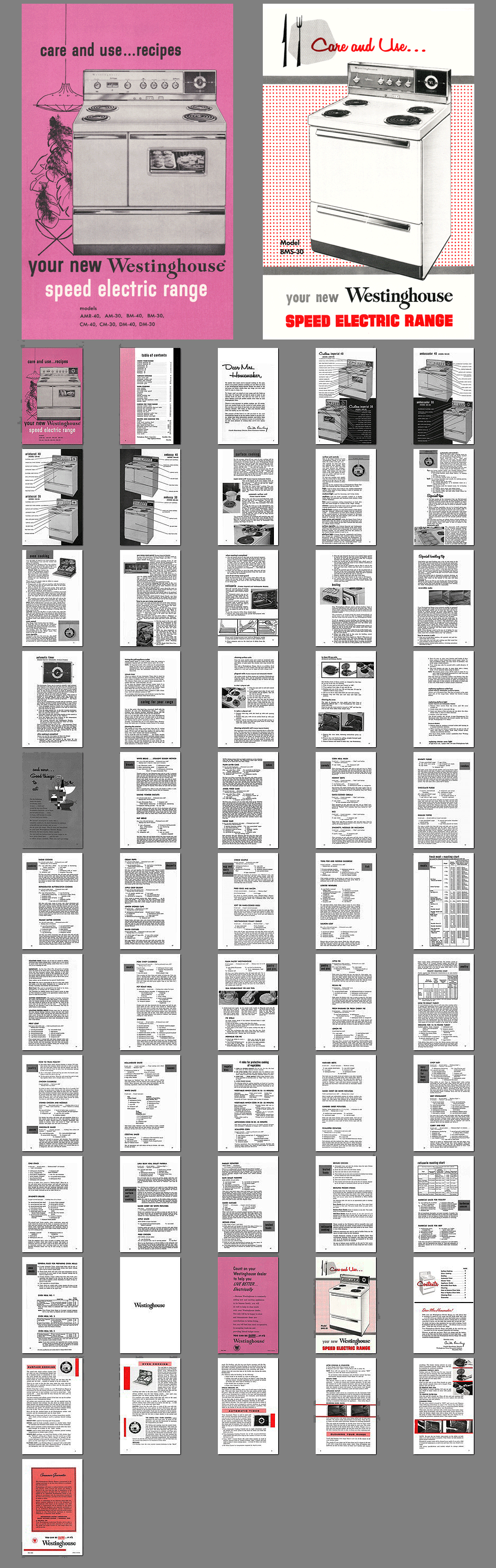

1959 Westinghouse Electric Range Owners Manuals


Published by Westinghouse in 1959-- Here are the owners manuals to most of the 1959 line of Westinghouse Electric Ranges and Ovens all packaged together in one complete hi-resolution pdf file.

Models include:
Custom Imperial AMR-40 and AMR-30,
Ambassador BM-40, BM-30 and BMS-30,
Aristocrat CM-40 and CM-30,
Embassy DM-40 and DM-30


No matter how much you've enjoyed cooking in the past,
there's even greater pleasure awaiting you now that you have
a new Westinghouse Speed Electric Range. It's easier to use
and gives you better results than any range you ever used.
And it's easy to clean, too.

No longer need you stand at your range and stir foods as
they cook. No longer will you have to guess or peek, to see
whether foods are done. Nor will you ever need to worry
about baking-you'll get perfect results every time in your
Westinghouse Oven.

There's a new accuracy in surface cooking, too. Of course,
there are marked heats on the control of each surface unit.
But you have your choice of a~y heat you want between those
settings-literally, 1001 heats, so that your favorite dishes
come out exactly as you want them.

The purpose of this book is to tell you how to use your
Westinghouse Range to get the perfect results it can give you.
So, please read these instructions carefully, and follow them
faithfully. Then you'll be assured of years of wonderful service
and more pleasure in cooking than you've ever known
before.



Number of Pages: 56
File Size: 32mb
Download Fee: $9.99

  Add 1959 Westinghouse Electric Range Owners Manuals to cart
