Your New Westinghouse Laundromat and Electric Clothes Dryer


Published by Westinghouse in 1960-- Owners manual and operating instructions to Westinghouse Laundromat model L-124 and matching dryer D-124.

Number of Pages: 24
File Size: 12mb
Download Fee: $11.99

  Add Your New Westinghouse Laundromat and Electric Clothes Dryer to cart
Please note that all publications presented here at Automatic Ephemera are on average between 35 and 85 years old. This information is presented as a educational/historical reference on vintage products of the past. Any trademarks or brand names appearing on this site are for nominative use to accurately describe the content contained in these publications. The associated trademarks are the sole property of their registered owners as there is no affiliation between Automatic Ephemera and these companies. No connection to or endorsement by the trademark owners is to be construed.


Review Selections & Checkout

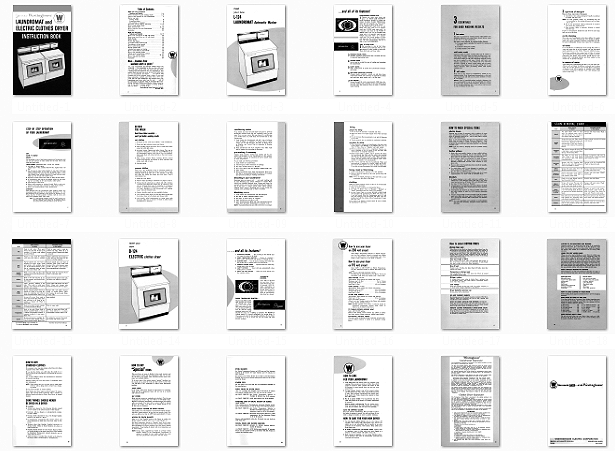

Here is an automated summary of some of the text contained in:
Your New Westinghouse Laundromat and Electric Clothes Dryer
Published in 1960

Important: Please note the summary text below was created by electronically reading the scanned images with optical character recognition software (ocr). OCR technolgoy is not yet perfected and you might see some spelling and formatting errors in the preview text below. These errors are not actually in the final product, the download file you will receive is a pure clean high-resolution scan of the original document, containing all text, graphics and photos exactly as originally printed.
Page 1:

Your New Westinghouse

LAUNDROMAT and ELECTRIC CLOTHES DRYER

Instruction Book

Page 2:

Table of Contents

Meet your new Laundromat

Features and Controls...................................3, 4

Three essentials for good washing results .................5, 6

Step by step operation of your Laundromat ................. 7

Before you wash

Sorting clothes ........................................... 8

Preparing clothes ......................................... 8

Pre-washing, if necessary ................................. 9

Bleaching, Tinting, Bluing, Starching ......................9, 10

How to wash special items ................................. 11

Stain removal chart .......................................12. 13

How to care for your new Laundromat ....................... 22

Guarantee ................................................. 23

Aleef your new dryer

Features and Controls..................................14, 15

How to use your Dryer on 230 volt circuit ............ 16

How to use your Dryer on 115 volt circuit ............ 16

Shelf drying .............................................. 16

Damp drying ............................................... 16

To dry fine fabrics ....................................... 16

To tumble clothes without heat ............................ 16

Five-minute, no-heat period ............................... 16

How to select drying times ................................ 17

Drying mixed loads ........................................ 18

Articles that require no ironing .......................... 18

How to load clothes in your Dryer ....................... 18

How to dry starched clothes ............................. 19

Things never to be dried in a Dryer ....................... 19

How to dry "special" items ................................20, 21

How to care for your Dryer .............................. 22

Guarantee ................................................. 23

Now... freedom from washday work is yours!

Yes, your Laundromat and Electric Clothes Dryer are wonderful . . . but, remarkable as they are, they still need your help. They will do what you want if you give them a guiding hand. The directions are very important for best results. Read this book from cover to cover now, before you use your Laundromat and Dryer . . . you will be well rewarded for the few minutes' time it takes. If you read these instructions carefully and follow them, we're sure you'll gain the most satisfaction and pleasure from your Laundromat and Dryer right from the start . . . and all the advantages we planned when we developed the Laundromat Automatic Washer and Electric Clothes Dryer for you.
Page 3:

meet your new

L-124

LAUNDROMAT Automatic Washer
Page 4:

...and all of its features!

FOUR-PROGRAM CONTROL DIAL . . .

Controls the wash time, rinses and spins for REGULAR FABRICS, FINE FABRICS, WASH 'N WEAR and COLD WATER WASH PROGRAMS. Select the wash program you want according to the type of fabric being washed . . . In the REGULAR wash cycle you get HOT wash water with 8 to 15 minutes' wash time, WARM wash water with 1 to 8 minutes' wash time. In the WASH 'N WEAR wash cycle you get WARM wash water with 5 to 8 minutes' wash time and COLD wash water with 1 to 7 minutes' wash time. The correct number of rinses and spins plus the correct rinse temperature will follow automatically. Pull out on dial to start LAUNDROMAT.

SUDS 'N WATER SAVER . . .

Set according to size of load being â„¢ washed and Laundromat will use only the amount of water needed for that load. Saves both wash and rinse water.

PORCELUX ENAMEL FINISH . . .

Specially prepared enamel finish that is durable and easy to clean for long-lasting luster.

LOADING DOOR . . .

Can be used as a shelf for ease of loading and unloading the Laundromat.

SAFETY DEVICE . . .

When loading door is opened the Laundromat automatically stops.

MULTI-SPEED REVOLVING AGITATOR . . .

Changes speeds constantly - speeds up and slows down continuously within each revolution to separate the clothes and wash each piece equally well - all the time.

LINT EJECTOR . . .

Sweeps through the water approximately 2000 times during each washing cycle, straining the lint and scum out of the wash water and ejecting it down the drain. It NEVER needs cleaning.
Page 5:

ESSENTIALS FOR GOOD WASHING RESULTS

1 hot water

Hot water is essential for washing heavily soiled clothes. For maximum efficiency your water heater should deliver water at 140°-160° F. to the Laundromat.

Hot water is more effective for washing clothes because:

A. It releases deeply embedded dirt quickly by opening up the fibers.

B. It dissolves detergents rapidly.

C. It helps sanitize your clothes.

cold water wash

Garments made of modern synthetic fibers can be washed in cold water. Cold water does not soften the fibers and it prevents setting wrinkles. Detergent should be thoroughly dissolved before adding to cold water. Shrinkage-resistant woolens can also be washed in cold water. Certain cold water wool washing compounds do a very efficient job. If a cold water pre-soak is desired to remove certain stains such as cream, ice cream or blood stains, your cold water setting may be used without detergent. After pre-soaking, follow with regular washing cycle.

2 soft water

Hard water is one reason for unsatisfactory results by any washing method. Your Laundromat demonstrator or the local water department will tell you the grains hardness of water in your locality.

Softener. With a controlled-sudsing synthetic detergent, the type recommended for use in your Laundromat, no softener is needed under normal water conditions. However, if water is over 30 grains hardness, add ⅛ cup softener and an extra ¼ cup of detergent to each load.
Page 6:

right kind of detergent

There are three main kinds of detergents:

A. Controlled or low-sudsing detergent. Usually, no softener is needed with this type.

NOTE: For best washing results, we recommend the use of a controlled or low-sudsing detergent such as Dash, All or Ad.

B. We do not recommend sudsing detergents as excessive suds retard the washing action.

C. Soap powders, flakes or granules. Softener is needed with this type.

Under no circumstances should the suds level be more than half way up on the door.

no dry cleaning

Never use your Laundromat to dry-clean clothes. It is made to use water only. Dry-cleaning fluid, even though not inflammable, may result in damage to machine, particularly the rubber parts. Inflammable cleaners may cause fire or explosion.

oil motes

If you should have a combination of not enough hot (140° F.) water and water that is not soft enough, you may find black specks appearing on your clothes. These are called oil motes.

Under these conditions, face creams, hair oil, baby oil, suntan oil or ointments can cause these oil motes to appear on towels, pillowcases and sheets. Such articles should first be pretreated with a detergent solution and then washed in the normal way to prevent oil spots.

to remove oil motes

Load clothes into Laundromat and add 1 to 2 cups water conditioner, such as Calgon, in addition to amount used to soften water. Do not add detergent. Set Control Dial at beginning of Regular Cycle. Allow machine to complete cycle. Again reset dial at beginning of Regular Cycle, add detergent and wash in usual way.
Page 7:

STEP BY STEP OPERATION OF YOUR LAUNDROMAT

set suds 'n water saver...

Set according to size of load being washed and Laundromat will use only the amount of water needed for the load. Saves both wash and rinse water.

LOAD CLOTHES (Maximum load - 10 lbs. dry weight)

1. Set Suds 'N Water Saver.

(Small load 3-4 lbs., medium load 5-6 lbs., regular load 7-10 lbs.)

2. Do not put too many large articles in one load. You'll get better washing action if you make up mixed loads of small and large pieces. No more than two double bed sheets, or two other equally large articles, should be in each full-sized load. Make up rest of load with smaller items.

3. Separate non-fast colors from white or light colored articles.

4. If everything in the load is not equally soiled, set the washing time according to the more heavily soiled pieces.

5. Add detergent. Close door.

6. Select wash program by turning Control Dial to wash temperature and wash time required by fabric being washed.

7. Pull out on Control Knob to start Laundromat.

DETERGENT

Add detergent into the Laundromat after loading clothes. We recommend using controlled or low-sudsing detergents. You will find directions on the package for the amount of detergent to use. Notice that the revolving agitator machine, such as yours, uses much less detergent than other types.

NOTE: If a high-sudsing detergent should be used, extreme care must be taken not to add too much as excessive suds retard the washing action. Under no circumstances should the suds level be more than half-way up on the door.
Page 8:

BEFORE YOU WASH

Read these Rules carefully... you'll get better washing results

sort clothes

1. By degree of soil. 2. By type of fabric. 3. By colorfastness.

1. White and light colorfast cottons and linens.

2. Dark colorfast cottons and linens. Do not wash items which create lint with dark colors.

3. All-white Nylons, Dacrons and silky Orlons. They can be washed by themselves, or with any ALL-WHITE load at any temperature setting, if the load is not to be bleached. Don't wash them with colored articles or they may become discolored.

4. Silks, rayons, acetates, Orlons, Acrilans, Dynels, colored Nylons and Dacrons, and blends of these materials with cotton, wool, silk or rayon.

5. Non-fast colors.

prepare clothes

There are a few preliminary steps in preparing articles for washing that apply to almost any item you may wish to wash. Although these steps take only a few minutes, you'll find they make the clothes last longer and look better. They'll wash cleaner, too.

1. Mend any torn places.

2. Remove stains according to directions on pages 12 and 13.

3. Pretreat heavily soiled spots on collars and cuffs, necklines of dresses and pillowcases which may be stained by hair oils, etc. Pretreat these spots by brushing on a detergent solution (1 tablespoon of detergent to 1 cup warm water). Use same detergent for both pretreating and washing. Apply with soft bristled brush.

4. Remove shoulder pads and non-washable buttons.

5. Close zippers, fasten hooks, tie belts and apron strings into bow knots, clean out all pockets and trouser cuffs.

6. Soak heavily soiled handkerchiefs in warm water with detergent added for 15 minutes. If bleach is added, follow manufacturer's directions.
Page 9:

conditioning clothes

Your clothes may have been left harsh and gray by previous laundering methods which did not completely rinse out the soap. If so, you may remove this soap deposit by conditioning your clothes before you wash them for the first time in the Laundromat.

1. Load clothes into Laundromat and add 1 cup of softener such as Calgon (in addition to amount used to soften water). Do not add detergent. Set Suds 'N Water Saver at Regular, and Control Dial at beginning of Regular Wash cycle.

2. Start Laundromat and let it complete cycle. Then wash load in regular way according to directions.

pre-washing, if necessary

Clothes which formerly needed long soaking can be prewashed automatically in your Laundromat in a few minutes. Pre-washing is effective in loosening soil and is usually done at warm temperatures.

To pre-wash, use following procedure:

1. Load clothes into Laundromat.

2. Add detergent. Follow directions on package.

3. Set Suds 'N Water Saver at "Regular."

4. Set Control Dial at 3rd deep RINSE in REGULAR cycle.

5. Start washer.

6. When Laundromat stops, again add detergent. Reset Control Dial to recommended setting for fabrics to be washed, and proceed according to washing instructions.

bleaching in your Laundromat

Bleaching does not remove soil . . . only good washing will do that. Bleaching may restore whiteness to certain fibers which were originally bleached white. Cottons and linens, for example, tend to revert to their natural yellowish tone. Bleaching is also done to remove certain stains which ordinary washing doesn't remove. Bleaching may be done during the washing cycle, providing load is white or colorfast.

bleaching -(Chlorine)

1. Load clothes into Laundromat and add detergent.

2. Set dial at "HOT" (Regular Fabrics cycle).

3. Set Suds 'N Water Saver at "Regular."

4. Start Laundromat and allow to fill.

5. After Laundromat has filled with water add diluted bleach. Close door and allow Laundromat to complete cycle.

NOTE: If powdered bleach is used, follow directions on package.
Page 10:

tinting

prepare for tinting

1. Be sure that the material is washable and clean.

2. Make sure there is an ample supply of hot water (at least 140°).

3. Do not tint more than one garment or one pair of draperies at one time.

4. Tinted garments are not colorfast to continuous washings. procedure for tinting

1. Place material or garment in Laundromat, close door, turn Control Dial to 3rd RINSE, in the REGULAR cycle, set Suds 'N Water Saver at "Regular" and start washer.

2. Remove garment when cycle is completed. Dissolve contents of package of dye in a quart of very hot water. Stir until mixture is completely dissolved.

3. Reset Control Dial to "HOT" and let machine fill. When the Laundromat has filled with hot water, stop machine and add dye solution. Close door, start washer and allow dye to become thoroughly mixed in water. Then stop Laundromat, add the garment and start machine again. Allow machine to complete cycle automatically.

4. Then remove material from the Laundromat. Shake and hang material or garment in a breezy, shady spot to dry. If it must be dried indoors, use a fan at either end of line. If you wish to press the garment, do so while it is still damp.

bluing-bead or flake bluing

1. Follow manufacturer's directions as to the quantity.

2. Bluing is added at beginning of the wash period along with the detergent.

NOTE: Never use bleach and bluing at the same time, as one counteracts the effect of the other.

starching

Make up a starch solution 3 times as thick as is recommended

for the heaviest starching.

1. Make up starch solution as recommended above.

2. Set Suds 'N Water Saver at "Regular," "Medium" or "Small" depending upon size load to be starched.

3. Set the Control Dial at 3rd deep RINSE in REGULAR cycle and after the Laundromat has filled with water, stop it and add starch. Start the Laundromat and let it run only long enough to mix the starch and water. Stop the machine and add the clothes. Allow Laundromat to complete the cycle.

If you wish to use liquid or instant starch be sure to follow

the manufacturer's directions.
Page 11:

HOW TO WASH SPECIAL ITEMS

electric sheets

Pretreat top of sheet if necessary with a solution of warm water and detergent being used. (For pretreating, use 1 tablespoon of detergent dissolved in 1 cup of warm water.) Apply with a soft bristled brush.

Pour â…› cup of low-sudsing detergent into Laundromat. Add sheet, then set Suds 'N Water Saver at "Regular." Turn Control Dial to WARM (8 MIN.) in REGULAR cycle. Pull on knob to start Laundromat and allow machine to go through complete cycle.

NOTE: Line dry sheet by hanging across two parallel clothes lines.

feather pillows

1. Wash only good quality feather or down stuffed pillows. Check pillow over carefully and see that seams are well sewed and that no seams are broken. If seams are ripped, place pillow in old pillow case and baste across top.

2. To wet pillow: place in Laundromat, set Suds 'N Water Saver at "Regular." Set Wash Control Dial at 3rd deep RINSE in REGULAR CYCLE. Allow machine to complete cycle.

3. Remove pillow from Laundromat, force out all air possible, return to Laundromat.

4. To wash pillow: add â…› cup detergent to machine, set Wash Control Dial at "Warm," close door, start Laundromat and allow to complete cycle.

5. Remove pillow from Laundromat, fluff up, and dry 2 hours (approximately) on "Low" heat in automatic dryer.

blankets

1. If blanket binding is very soiled, make up a solution of 2 tablespoons of the detergent being used with 1 cup warm water and pretreat top of blanket with a soft bristled brush.

2. Set Suds 'N Water Saver at "Regular."

3. Add detergent to Laundromat, set Control Dial at WARM on REGULAR cycle. Start Laundromat and allow machine to fill. Stop machine.

4. Add blanket and immerse as well as possible. Close door and allow blanket to soak for 10-20 minutes depending upon soil.

5. Advance Control Dial to drain and allow cycle to continue until tub is filled with rinse water. Allow blanket to rinse for 1 minute then advance dial to final drain. Let machine complete cycle.

NOTE: It is very important not to activate a woolen blanket any more than necessary. Activation causes additional shrinkage.
Page 12:

STAIN REMOVAL CHART (see download document)
Page 13:

Stain

White Cottons or Linens

Washable Colored or Fine Fabrics

To remove catsup-same as Fruits, etc. To remove chlorophyll-same as Grass.
Page 14:

meet your new

D-124

ELECTRIC clothes dryer
Page 15:

and all its features!

1. AUTOMATIC CONTROL . . . Set according to the desired time you want the clothes to be dried.

2. FABRIC TEMPERATURE SELECTOR . . . Choice of 4 settings - REG, LOW, AIR FLUFF and WASH 'N WEAR drying.

3. LOADING DOOR . . . Can be used as loading shelf when putting clothes into or taking them out of the Dryer.

4. PORCELUX ENAMEL FINISH . . . Special Finish for extra long-lasting luster. Easy to clean.

5. SAFETY SWITCHES . . . Dryer will stop automatically when loading door is opened.

6. DIRECT AIR FLOW DRYING . . . Warm air pours directly into the tumbling clothes.

AUTOMATIC CONTROL

Turn dial to desired drying time. Dryer starts when drying time is selected. (For detailed instructions on how to select the proper drying times turn to page 17.) Machine shuts off automatically after time has elapsed.

FABRIC TEMPERATURE SELECTOR . . .

Choose from REG, LOW,

AIR FLUFF and WASH 'N WEAR heat operation. You will use the REG heat setting for most of your drying. LOW heat may be used for drying synthetic fabrics and AIR FLUFF for airing out or fluffing up garments. The WASH 'N WEAR setting is a special temperature for drying Wash 'N Wear garments under the best possible conditions. (If your Dryer is hooked up to 115 V service use only the LOW and AIR FLUFF settings.)
Page 16:

How to use your dryer on 230 volt circuit

Turn Fabric Temperature Selector to desired temperature. Set Dry Selection Control to desired time clothes are to be dried. Dryer will automatically start when length of time clothes are to be dried is selected.

How to use your dryer on 115 volt circuit

Select LOW or AIR FLUFF on Fabric Temperature, turn Dry Selection Control to desired time load is to be dried.

NOTE: CLEAN DRYER BEFORE USING.

To make sure no travel dust is in your Dryer, wipe it out thoroughly, both inside and outside with a damp cloth.

SHELF DRYING (115 Volts)

Approximate Time settings for Cottons and Linens.

Maximum load (10 lbs.) ......................l¾ to 2 hours

Average load (6 lbs.) .......................1 to l¼ hours

Small load (3 lbs.) .........................40 to 45 minutes

DAMP DRYING (115 Volts)

Approximate Time settings for Cottons and Linens.

Maximum load (10 lbs.) ......................50 to 60 minutes

Average load (6 lbs.) .......................35 to 45 minutes

Small load (3 lbs.) .........................20 to 30 minutes

TO DRY FINE FABRICS (iis Volts)

Approximate Time settings for Nylons and Dacrons.

Small load (3 lbs.) .........................25 to 30 minutes

Nylon and Orion Sweaters .........................20 minutes

(Place 3 or 4 dry Turkish towels in the Dryer with sweaters to cushion against tumbling action.)

NOTE: Durably pleated woven Nylon or Dacron should be drip-dried; permanently pleated tricot Nylon or Dacron can be dried in the Dryer.

TO TUMBLE CLOTHES WITHOUT HEAT

Select AIR FLUFF setting.

Dried at this setting: Vinyl curtains, any plastic or plastic lined baby articles, plastic raincoats, rubber-coated fabrics.

FIVE-MINUTE, NO-HEAT PERIOD

The heater turns off during the last 5 minutes of drying time, and the clothes continue to tumble in a gradually cooling breeze.
Page 17:

How to select DRYING TIMES

Drying times vary

Times given in this book are based on clothes taken from the Westinghouse Laundromat Automatic Washer and placed in a cold Dryer. Experiment with drying periods the first few times you use your Dryer. You will quickly learn to estimate drying times to suit varying conditions and the amount of moisture you prefer for ironing. Here are some of the things which affect drying times.

Kind and weight of fabric

Heavy fabrics hold more water and naturally take longer to dry. Your Dryer will work more efficiently if light-weight and heavy-weight articles are dried separately.

Size of load

Smaller loads of clothes dry faster than full loads, since they contain less water.

Temperature in drying room

Low temperatures in the room where the Dryer is located will lengthen drying time.

Wringer washers

A wringer leaves more water in clothes than a spinner type or automatic washer. Also some spin-dry operations remove more water than others.

Low voltage

Will also lengthen drying time. Call your utility company if in doubt about voltage supplied to your Dryer.

Dryer heated by previous use

Drying time will be shortened.

DO NOT OVERDRY FABRICS

Overdrying removes the natural moisture content of the fibers. Fabrics which are overdried are not as soft, strong, and wrinkle-free as they should be.

HOW TO CHECK ARTICLES FOR DRYNESS (on time dry)

Open the door of your Dryer and draw part of an article out of the Dryer and feel it. Remember, it will feel drier outside than in the warm, moist air inside the Dryer.

REMOVE CLOTHES IMMEDIATELY AFTER DRYER STOPS

Dry clothes will be far more wrinkle-free if you take them from the Dryer as soon as they are dried than if they remain in the Dryer for several hours. Don't be alarmed by lint. Lint is caused by normal wear.
Page 18:

CLOTHES TO BE DAMP-DRIED FOR IRONING

Separate articles to be damp-dried from those to be completely dried. To save time, it's a good idea to do the damp-dry loads first. Your clothes will come out damp-dried, ready for immediate ironing. The clothes to be shelf-dried can be drying while you iron.

WHEN YOU DRY MIXED LOADS

When you put a load of clothes in your Dryer in which some articles are to be damp-dried and others completely dried, set Timer Dial to time for load to be damp-dried. When Dryer stops, remove articles to be ironed and reset control for additional time needed to dry rest of load. You can use any system you prefer for making up loads to be dried in your Dryer. Some homemakers find it convenient to dry clothes in loads which are made up of articles they wash together. Others prefer to sort all the washed clothes into loads that fit their ironing plans. Do not dry non-colorfast articles with white or light-colored items.

MANY ARTICLES REQUIRE NO IRONING

These articles dry so soft and wrinkle-free that they are ready to use, or to fold and put away, just as they come from your Dryer.

Lightweight Items

flannelette items coarse-woven place mats cotton socks diapers dish towels

knitted cotton garments seersucker articles washcloths

Heavier Items

bath towels and mats chenille robes and spreads corduroy articles cotton blankets flannelette robes quilts shag rugs

terry cloth garments

HOW TO LOAD CLOTHES IN YOUR DRYER

Before loading, close zippers and fasten hooks to prevent snagging garments.

HOW MUCH TO LOAD AT ONE TIME

Your Dryer holds up to 10 pounds of dry clothes depending upon type and bulk of articles. Don't overload your Dryer, because it retards the gentle tumbling action. You can estimate the dry weight of common items by this table.

3 pillowcases 1 lb. 2 to 4 children's dresses lib.
6 linen towels 1 lb. 2 or 3 women's dresses 1 lb
2 or 3 bath towels 1 lb. 6 to 8 diapers 1 lb
4 hand towels lib. 16 face cloths 1 lb
2 men's shirts 1 lb. 1 twin or ¾ sheet 1 lb
1 pair blue jeans lib. 1 double sheet l¾ to 2 lbs.

WHEN DRYING HEAVY ITEMS

Do not put more than one very heavy item, such as a bedspread or rug, in the Dryer at one time. Good tumbling action is needed to fluff-dry these items.
Page 19:

HOW TO DRY STARCHED CLOTHES

If you prefer to dry starched clothes in the Dryer, dry them separately from other clothes.

If you wish the clothes very stiff, make the starch 2 or 3 times as thick as the manufacturer recommends for heaviest starching.

For average stiffness, follow the manufacturer's directions for heaviest starching.

Starched clothes will iron more easily if completely dried and redampened.

NOTE: When clothes are dry, you may wish to wipe inside of Dryer with a damp cloth to remove any remaining starch.

Drying Non-Colorfast or Tinted Clothes.

Some clothes may leave stains on Dryer basket. To remove stains, take several cloths moistened with a solution of chlorine bleach and place in Dryer. Run Dryer in normal manner.

SOME THINGS SHOULD NEVER BE DRIED IN A DRYER

for example:

• Articles just cleaned in Dry-Cleaning Solution should never be dried in the Dryer because of fire hazard.

• Garments, pillows, slippers or undergarments containing foam rubber.

• Cleaning cloths saturated in wax, even though washed, should not be dried in a Dryer.

• If manufacturer recommends that certain acetate and rayon garments be dried away from heat, hang on line to dry.

• Woolens, other than blankets. Detailed directions for drying woolen, Orion or Dynel blankets are given on pages 20 and 21.

• Durably pleated dresses of woven Nylon, Dacron, Orion or Acrilan should not be dried in the Dryer. They should be drip-dried. Permanently pleated garments can be safely dried in Dryer.

• Fabrics of glass or metallic fibers should not be dried in the Dryer unless recommended by manufacturer.
Page 20:

HOW TO DRY

"Special" items

This new Dryer of yours is flexible. It has such accurate and varied control of both time and temperature that now you can dry the bulk of your family wash, including articles made of the many new synthetic fabrics.

To be sure, some of the articles require "special" handling, but the results are so good, the work and time saved so great, that you will find it very worthwhile to follow these instructions carefully.

TABLE LINENS

Good quality table linens should be damp-dried. If completely dried and then re-dampened, linens will not iron to as smooth and lustrous a finish.

SLIP COVERS

Make sure slip covers are washable and colorfast. Check drying occasionally and remove slip cover while it is still slightly damp. Replace on furniture immediately, smoothing seams and surfaces with your hands. You may wish to press ruffled or pleated flounces, but usually, even these can be pulled smooth as you fit slip covers on furniture.

GOOD QUALITY FEATHER OR DOWN PILLOWS

Check label to see if manufacturer recommends washing and drying pillow. Inspect seams to be sure they are securely sewed. Dry only one pillow at a time on LOW heat approximately 2 hours.

WOOLEN OR ORLON BLANKETS

Place 4 or 5 dry Turkish towels in the Dryer to cushion the blanket against tumbling action. Do not add blanket yet.

Set fabric temperature selector to "Regular" heat. Set dry selection control to 25 minutes, let Dryer heat 5 minutes with towels, then add blanket. Let Dryer complete cycle, then remove blanket immediately. Press binding if desired with iron temperature set at lowest setting.

NOTE: Drying times suggested are based on average woolen blankets washed in the Westinghouse Laundromat. If spinner or wringer on your washer extracts less water than the Laundromat, drying time will take longer.
Page 21:

DYNEL BLANKETS

Set Fabric Temperature Selector to LOW heat, set Dry Selection Control to 20 minutes for large blankets and 10 minutes for baby blankets.

Be careful not to overdry Dynel. If you wish to press the blanket binding, use dry iron at lowest setting and be sure not to let iron touch the Dynel.

STUFFED TOYS

Do not wash or dry toys that are not guaranteed washable by the manufacturer.

FLEECY ORLON OR NYLON COATS

(Put 3 or 4 medium size Turkish towels in the Dryer to cushion coat against tumbling action. Dry only one coat at a time.)

230-VOLT CIRCUIT-Set Fabric Temperature Selector at WASH 'N WEAR. Dry 20-25 minutes.

115-VOLT CIRCUIT-LOW heat setting. Dry 25-30 minutes. WASHABLE SUITS OF ORLON, DACRON OR BLENDS

(WASH 'N WEAR)

After washing suit in Westinghouse Automatic Washer according to recommendations, it may be dried in the following manner:

230-VOLT CIRCUIT-Set Fabric Temperature Selector to WASH 'N WEAR temperature. Set Dry Selection Control to 25 to 30 minutes.

115-VOLT CIRCUIT-Set Fabric Temperature Selector to LOW temperature. Set Dry Selection Control to 35 to 40 minutes.

Remove suit immediately when dry. If desired, you may touch-up with steam iron.

NYLON, ORLON AND DACRON SWEATERS

230-VOLT CIRCUIT-WASH 'N WEAR Setting approximately 20 minutes.

115-VOLT CIRCUIT-LOW Setting approximately 30 minutes. Put 3 or 4 dry Turkish towels in the Dryer with the sweater to cushion the tumbling action.
Page 22:

HOW TO CARE

FOR YOUR LAUNDROMAT

1. Turn water off at both faucets when you complete your washing. This prevents any strain on rubber hose which might be caused by water pressure. Of course, it will be necessary to open faucets when you next use your Laundromat.

2. To clean exterior. Simply wipe off the enamel surface and the chrome trim with a clean, damp cloth from time to time. When cleaning Laundromat keep polish away from plastic trim. Some cleaners have agents in them that affect plastic.

3. No oil or grease needed. Your Laundromat has been oiled and greased at the factory. No further lubrication is necessary.

Washing basket is self-cleaning. The tub, rinsing operations, and spinning of the basket during the extraction cycle keep the basket and tub clean and sparkling.

SAVE THE SHIPPING CLAMPS

that come with the Laundromat. They are used to anchor

the basket if machine is moved. You will need them if you

wish to change its location or move to another residence.

HOW TO CARE FOR YOUR NEW DRYER

1. You can keep the cabinet exterior clean by just wiping it off regularly with a damp cloth. High-quality wax, such as you might use on your automobile, may be applied as an extra protection for the lustrous, white surface. Keep polish away from plastic trim.

2. If basket is stained from non-colorfast clothes, remove stain by tumbling a load of cloths which have been dipped in a solution of chlorine bleach and lightly wrung out.

3. Motor requires no attention-not even oiling. Lifetime lubrication is sealed in. The motor is automatically protected from overloads and burnouts.
Page 23:

Westinghouse Laundromat Guarantee

Page 24:

you can be sure...if it's Westinghouse


Here are the 25 most recent documents added to the library...
Add
High-Res
Download
to Cart
Click Thumbnail for More Information Title
and
Description
Product Year # of Pages File
Size
Download
Fee
Add to download cart
Thumbnail Image of Download 1978 GM-Frigidaire Microwave Oven Service Manual
Comprehensive service manual to all Frigidaire Microwave Ovens.

Models Included: RCM-5, RCM-7, RWM-7, RCM-9
Microwave Ovens
Published by:
Frigidaire
0 86 110mb $14.99
Add to download cart
Thumbnail Image of Download 1975 Frigidaire Wall Ovens and 30 Inch Electric Ranges Service Manual
Complete service manual to all 1975 Frigidaire home 30" wide electric cooking ranges along with all 1975 Frigidaire Wall Ovens. Complete troubleshooting, service instructions and wiring diagrams included.

Models include:
Wall Ovens: RBG-94, RBG-97, RBE-94, RBE-97
30" Ranges: RB-530, RBG-533, RBE-533, RBEG-539C.
Ranges/Stoves
Published by:
Frigidaire
1975 80 123mb $14.99
Add to download cart
Thumbnail Image of Download 1976 Frigidaire Touch-N-Cook Range Service Manual
Complete service manual to 1976 Frigidaire Touch-N-Cook Electric Range and Oven, model REG-39CD.


Ranges/Stoves
Published by:
Frigidaire
1976 40 60mb $14.99
Add to download cart
Thumbnail Image of Download 1977 Frigidaire Built-In Touch-N-Cook Ranges Service Manual
Complete service manual to 1977 Frigidaire Touch-N-Cook Built in cooking appliances.

Models include: REG-539CD, RE-94D, RB139D.
Ranges/Stoves
Published by:
Frigidaire
1977 68 106mb $14.99
Add to download cart
Thumbnail Image of Download 1973 Frigidaire Ceramic Ceramatop Range Service Manual
Complete service manual to Frigidaire ceramic top range model number RCDE3-37CU. Complete troubleshooting, service instructions and wiring diagrams included.


Ranges/Stoves
Published by:
Frigidaire
1973 39 62mb $14.99
Add to download cart
Thumbnail Image of Download 1976 Frigidaire Built-In Electric Ranges Service Manual
Complete service manual to all 1976 Frigidaire built-in electric ranges and wall ovens. Complete troubleshooting, service instructions and wiring diagrams included.

Models include:
R-530, RG-533, RE-537, REG-539C, RB-131, RB-133, RB-137C, RG-94, RE-94, RG-97, RE-97
Ranges/Stoves
Published by:
Frigidaire
1976 95 130mb $14.99
Add to download cart
Thumbnail Image of Download 1979 Frigidaire 30 Inch Electric Ranges Service Manual
Complete service manual to all 1979 Frigidaire home 30" wide electric cooking ranges. Complete troubleshooting, service instructions and wiring diagrams included.

Models include:
RE-636VG, REG-638VG, REG-639CVG, REM-638VG, REM639CVG
Ranges/Stoves
Published by:
Frigidaire
1979 86 113mb $14.99
Add to download cart
Thumbnail Image of Download 1968 Frigidaire Free-Standing Electric Range Service Manual
Here is the comprehensive service manual to all 1968 Frigidaire 30" and 40" free standing electric ranges.

Models include:
30" Ranges: RSA-30N, RS-30N, RS-35N, RD-35N, RDG-38N, RCDG-39N, RE-30N, RSAE-30N, RSE-36N, RDE-38N, RCDE-39N, RCIE-39N, RXE-39N

40" Ranges: RS-10N, RD-20N, RDDG-20N, RCDG-71N, RSE-15N, RDE-20N, RCIE-75N

24" Ranges: RAN-4, RAH-4
Ranges/Stoves
Published by:
Frigidaire
1968 74 106mb $14.99
Add to download cart
Thumbnail Image of Download 1968 Frigidaire Refrigerator-Freezer N Line Service Manual
Here is the comprehensive service manual for all 1968 Frigidaire home refrigerator-freezer models.

Models include:
D-100N, D-116N, FD123TN, FD-141TN, FCDM-148N, FPD-121TN, FPD-146TN, FPD-146TAN, FPD-166TN, FPD-166TAN, FPD-144BN
Refrigerators/Freezers
Published by:
Frigidaire
1968 95 71mb $14.99
Add to download cart
Thumbnail Image of Download Frigidaire Basic Refrigeration Home Study Course
Here is a great primer to learning how to service 20th century refrigerator-freezers. It is a home study course from Frigidaire although this is valid for most brands of refrigerators.

Topics include:
Basic Food Preservation,
Fundamentals of Refrigeration,
Systems and Components
Refrigerators/Freezers
Published by:
Frigidaire
1978 64 71mb $14.99
Add to download cart
Thumbnail Image of Download 1953-1958 Frigidaire Refrigerator Parts Catalog
Here is a complete catalog with illustrations of parts, part names and part numbers for all Frigidaire Home Refrigerator-Freezers.

Models Include...
1953 Models:
AS-44, AS-44F, AS-61, AS-83, AS-76, SS-77, DS-90, OS-106, IS-106, IS-106P, IS-108, IS-108P, MS-86, MS-90, SS-72, SS-74, SS-86, SS-86P, SS-97, SS-114

1954 Models:
AT-44, AT-61, CT-70, CT-701, CT-702,CTD-84, CTD-84P, CTD-841, CTD-841P, CTD-842, CTD-842P, CTD-103, CTD-1031, CTD-1032, CTD-103S, CTI-103, CTI-103P, CTI-1031, CTI-1031P, CTI-1032, CTI-1032P, CTI-130, CTI-130P, CTI-1301, CTI-1301P, CTI-1302, CTI-1302P, CTI-150, CTI-150P, CTI-1501, CTI-1501P, CTI-1502, CTI-1502P, ST-76, ST-761, ST-762, STD-76, STD-761, STD-762, STD-91, STD-91P, STD-911, STD-911P, STD-912, STD-912P, STD-110, STD-1101, STD-1102

1955 Models:
AY-44, AY-61, CDV-84, CDV-103, CDV-103P, CDV-1031, CDV-1031P, CDV-1032, CDV-1032P, CDV-103S, CDV-112S, CIV-84, CIV-84P, CIV-841, CIV-842, CIV-841P, CIV-842P, CIV-1121P, CIY-1122P, CIV-112, CIV-112P, CIV-1121, CIV-1122, CIV-115, CIV-115P, CIV-1151, CIV-1152, CIV-1151P, CIV-1152P, CIV-1501P, CIV-1502P, CIV-143, CIV-143P, CIV-1431, CIV-1431P, CIV-1432, CIV-1432P, CIV-150, CIV-150P, CIV-1501, CIV-1502, SV-76, SDV-76, SV-76S, SDV-91, SDV-91P, SDV-911, SDV-912, SDV-110, SDV-91S, SDV-911P, SDV-912P, SDV-91PS

1956 Models:
A-44-56, A-61-56, CP-120-56, PCP-120-56, CP-143-56, PCP-143-56, FD-95-56, PFD-120-56, FD-120-56F0-95-56, FD-120-56, FDS-120-56, FDS-121-56, FI-121, PFI-121-56, FIW-150, S-80-56, S-80-56, SA-80-56, SS-80-56, SS-80-56, SAW-81, SSW-81, SA-80-56, SS-80-56, SAW-81, SSW-81, S-101-56, PS-101-56, S-121-56, SS-101-56

1957 & 1958 Models:
CP-123-57, CP-141-57, CP-125-58, CP-144-58, CP-123-57, CP-141-57, CP-125-58, CP-144-58, PGP-141-57, PCP-144-58, D-11S-58, FD-101-57, FD-102-57, FD-120-57, FD-120-57, PFD-120, FD-122-58, FD-122-58, FI-120-57, FI-123-58, FI-120-57, FI-123-58, PFI-120-57, PFI-123-58, FI-121-57, FI-122-58, FI-121-57, FI-122-58, PFI-122-58, FP-142-58, FP-142-58, FS-101-57, FD-104-58, FD-104-58, PFS-101-57, PFD-104-58, S-80-57, SA-81-57, S-8-58, SA-8-58, S-80-57, SA-81-57, SS-81-57, S-8-58, SA-8-58, SS-8-58, SS-81-57, SS-8-58, S-104-57, S-124-57, D-11-58, D-13-58, S-104-57, S-124-57, D-11-58, D-13-58, PD-11-58

Having the manufacturers part number for the part you need is essential for doing internet/eBay searches to locate these rare, no longer available parts. In many circumstances they can be found once you know the part number. This guide is essential for anyone who has any vintage Frigidaire appliance.
Refrigerators/Freezers
Published by:
Frigidaire
1958 634 145mb $14.99
Add to download cart
Thumbnail Image of Download 1965 Frigidaire Refrigerator-Freezer J Line Service Manual
Here is the comprehensive service manual for all 1965 Frigidaire home refrigerator-freezer models. Also included is the supplement for servicing their brand new automatic ice maker.

Models include:
S-10J, D-10J, D-12J, D-14J, FD-12TJ, FDA-13TJ, FD-13TJ, FD-14BJ, FCDM-14J, FPD-12TJ, FPDA-14TJ, FPD-14TJ, FPDA-14BJ, FPD-14BJ, FPD-16BJ, FPD-19BJ, FPI-12TJ, FPI-14TJ, FPI-14BJ, FPI-16BJ, FPI-19BJ, FPI-16BAJ.
Refrigerators/Freezers
Published by:
Frigidaire
1965 120 103mb $14.99
Add to download cart
Thumbnail Image of Download 1966 Frigidaire Refrigerator-Freezer K Line Service Manual
Here is the comprehensive service manual for all 1966 Frigidaire home refrigerator-freezer models.

Models include:
S-10K,D-10K, D-12K, D-14L, FDA-12TK, FDA-13TK, FD-13TK, FDA-14BK, FCDM-14K, FPDA-14-12TK, FPDA-14TK
Refrigerators/Freezers
Published by:
Frigidaire
1965 96 72mb $14.99
Add to download cart
Thumbnail Image of Download 1955 ABC-O-Matic Automatic Washer Service Manual
Full and comprehensive service manual to the 1955 line of ABC-O-Matic automatic and semi-automatic washers. Service bulletins also included at the end of the document.

Models include: 61, 71, 81 and 91.
Automatic Washers
Published by:
ABC-O-Matic
1955 56 77mb $12.99
Add to download cart
Thumbnail Image of Download 1965-1966 Frigidaire Coin-Operated Washers Service Manual
Here are the service manuals to the first Super-Duty transmission commercial/coin-op automatic washers from Frigidaire. These are the 1010rpm spin/18 minute cycle washers.

Models include: WCOJ, WCOJ-M, WCOJ-LP, WCOJ-MLP, WCK, WCK-LP, WCK-M, WCK-MLP.
Automatic Washers
Published by:
Frigidaire
1965 132 171mb $12.99
Add to download cart
Thumbnail Image of Download 1964 Montgomery Ward Portable Dishwasher Owners Manual
Here are the complete use/care and operating instructions to Montgomery Ward's Signature portable dishwasher model FFT-977 and FFT-937.


Dishwashers
Published by:
Montgomery Ward
1964 12 22mb $11.99
Add to download cart
Thumbnail Image of Download 1953-1960 Westinghouse Service Beacons
Here is a random sampling of Westinghouse Service Beacons from '53-'60. These are service bulletins that were released every few months on Westinghouse appliances. They include tips on servicing, new procedures and product changes.


Automatic Washers & Dryers
Published by:
Westinghouse
1960 230 222mb $12.99
Add to download cart
Thumbnail Image of Download 1961-1962 Westinghouse Service Beacons
Here is a random sampling of Westinghouse Service Beacons from '61 thru '62 These are service bulletins that were released every few months on Westinghouse appliances. They include tips on servicing, new procedures and product changes.


Automatic Washers & Dryers
Published by:
Westinghouse
1962 268 176mb $12.99
Add to download cart
Thumbnail Image of Download 1963-1965 Westinghouse Service Beacons
Here is a random sampling of Westinghouse Service Beacons from '63 thru '65 These are service bulletins that were released every few months on Westinghouse appliances. They include tips on servicing, new procedures and product changes.


Automatic Washers & Dryers
Published by:
Westinghouse
1965 274 218mb $12.99
Add to download cart
Thumbnail Image of Download 1972 Kenmore Washer Owners Manual
Here is the owners manual, wash guide, parts list and installation instructions packed with every 600 series Kenmore automatic washer from 1972. Models include: 110.7204610, 110.7204660, 110.7205610, 110.7205660.


Automatic Washers
Published by:
Kenmore
1972 48 56mb $14.99
Add to download cart
Thumbnail Image of Download 1954 Kenmore Washer Owners Manual
Here is the complete use and care guide to the 1954 Kenmore Automatic Washer.


Automatic Washers
Published by:
Kenmore
1954 20 26mb $11.99
Add to download cart
Thumbnail Image of Download 1959 Kenmore Automatic Washer Owners Manual
Here is the complete owners manual and operating instructions to the middle of the line Kenmore Alphabet Automatic Washer from 1959.


Automatic Washers
Published by:
Kenmore
1959 20 28mb $11.99
Add to download cart
Thumbnail Image of Download Electrolux XII Vacuum Cleaner Owners Manual
Here is the complete owners manual and use/care guide to Electrolux Vacuum model XII.


Vacuum Cleaners
Published by:
Electrolux Vacuum (now Aerus)
1933 36 43mb $11.99
Add to download cart
Thumbnail Image of Download 1967 Easy Automatic Washer Service Manual
Here is the comprehensive service manual to Easy automatic washers from 1967. Models include: WA-355, WA-344, WA-323, WA-322, WA-3226, WA-321.

Sections include: Specifications, Features, Installation, Servicing and Troubleshooting.
Automatic Washers
Published by:
Easy
1967 60 72mb $12.99
Add to download cart
Thumbnail Image of Download Construction and Operation of the Bendix Home Laundry
Here is an early service manual for Bendix bolt-down front-loading automatic washers. It covers the pre-war models. Parts catalog at the end also covers post war models up to the early 1950's.

Sections include:
Construction and Operation
Installing
Servicing
The Business of Service
Washing Practice
Parts Catalog

Models: S-101, B-201, S-110, B-210, B-215, B-211, B-212
Automatic Washers
Published by:
Bendix
1941 181 182mb $14.99

Review Selections & Checkout          --          Continue Browsing the Library

For license and copyright information related to these materials please click here.

Please note that all publications presented here at Automatic Ephemera are on average between 35 and 85 years old. This information is presented as a educational/historical reference on vintage products of the past. Any trademarks or brand names appearing on this site are for nominative use to accurately describe the content contained in these publications. The associated trademarks are the sole property of their registered owners as there is no affiliation between Automatic Ephemera and these companies. No connection to or endorsement by the trademark owners is to be construed.
