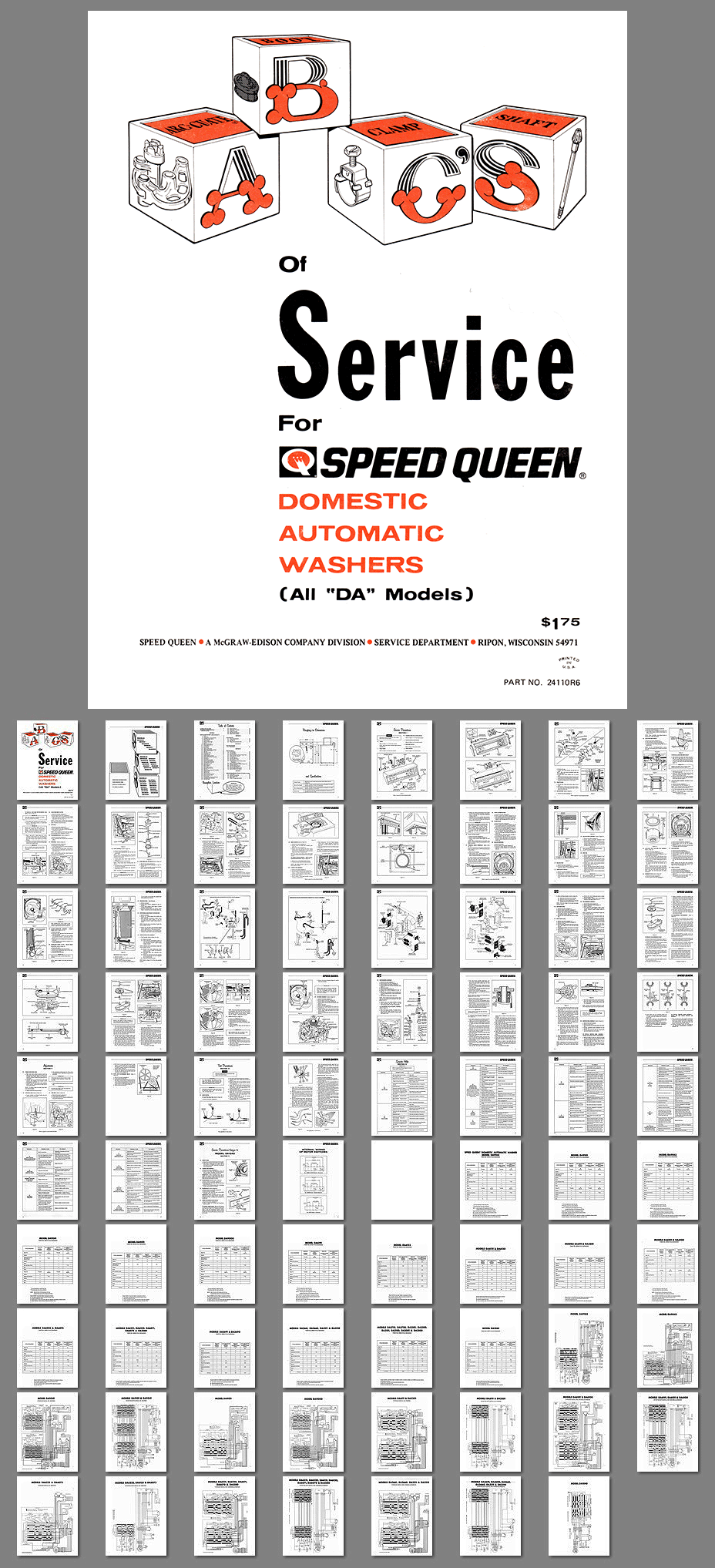

1970 Speed Queen Washer Service Manual


Published by Speed Queen in 1970-- Here is the comprehensive service manual to the 10970 line of Speed Queen Automatic Washers. This was the first models that used a reversing motor to shift from wash to spin instead of large solenoids like in the previous models.

Sections include: Service Procedures, Adustments, Test Procedures, Service Helps, Service Procedures Unique to Each Model, Timer sequence charts for each model and Wiring diagrams.

Models Covered Include:
DA9103
DA9101
DA9043
DA9041
DA9011
DA9000
DA6223
DA6221
DA6220
DA6191
DA6123
DA6121
DA6120
DA6111
DA6101
DA6100
DA6073
DA6071
DA6070
DA3781
DA3780
DA3691
DA3690
DA3661
DA3660
DA3501
DA3500
DA3211
DA3210
DA3201
DA3101
DA3100
DA3080
DA3001
DA3000
DA1040


Number of Pages: 82
File Size: 34mb
Download Fee: $7.99

  Add 1970 Speed Queen Washer Service Manual to cart
Please note that all publications presented here at Automatic Ephemera are on average between 35 and 85 years old. This information is presented as a educational/historical reference on vintage products of the past. Any trademarks or brand names appearing on this site are for nominative use to accurately describe the content contained in these publications. The associated trademarks are the sole property of their registered owners as there is no affiliation between Automatic Ephemera and these companies. No connection to or endorsement by the trademark owners is to be construed.


Review Selections & Checkout
