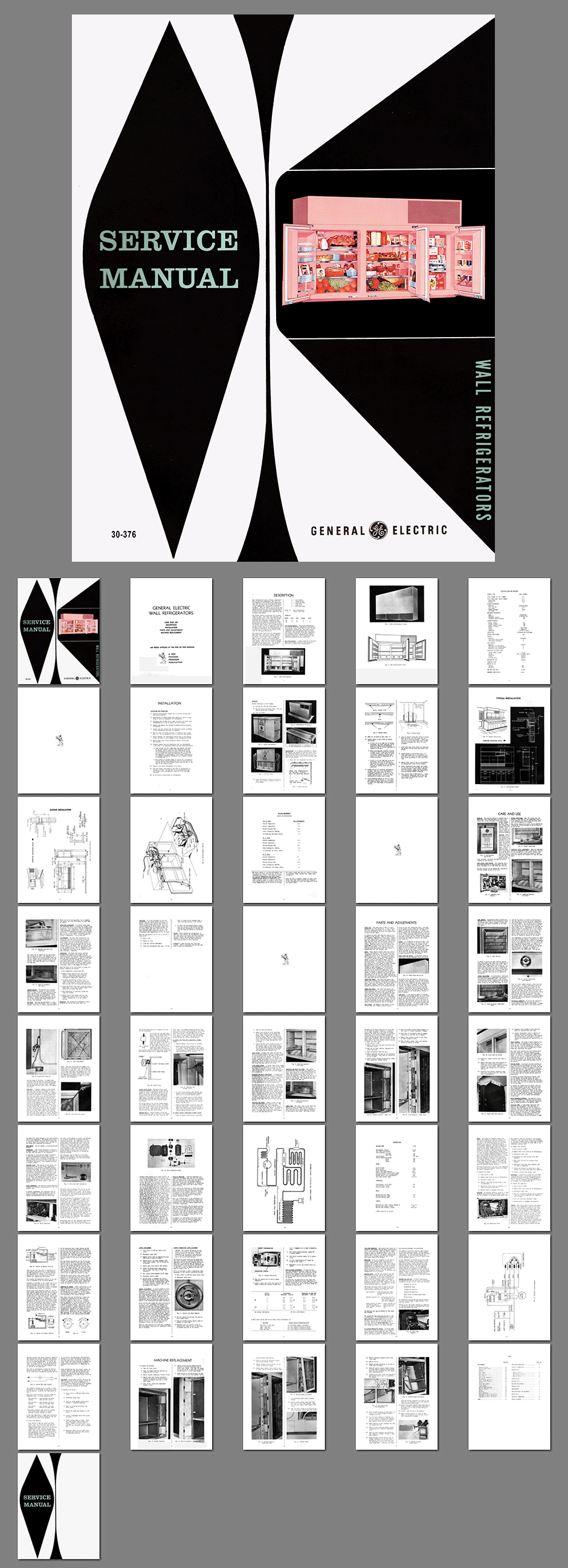

1955 General Electric Wall Mounted Refrigerator Service Manual


Published by General Electric in 1955-- Here is complete service manual to the 1955 Line of General Electric wall mounted refrigerators.

Sections include:
Adjustments, Care, Cold Room Operation, Cycle of Operation, Description, Installation, machine Data, Machine Replacement, Nomenclature, Performance, Specifications and Features, Uncrating, Vacation Operation, Wiring Diagram.

Models include: LW11-M, LW10-M.

Number of Pages: 41
File Size: 21mb
Download Fee: $14.99

  Add 1955 General Electric Wall Mounted Refrigerator Service Manual to cart
