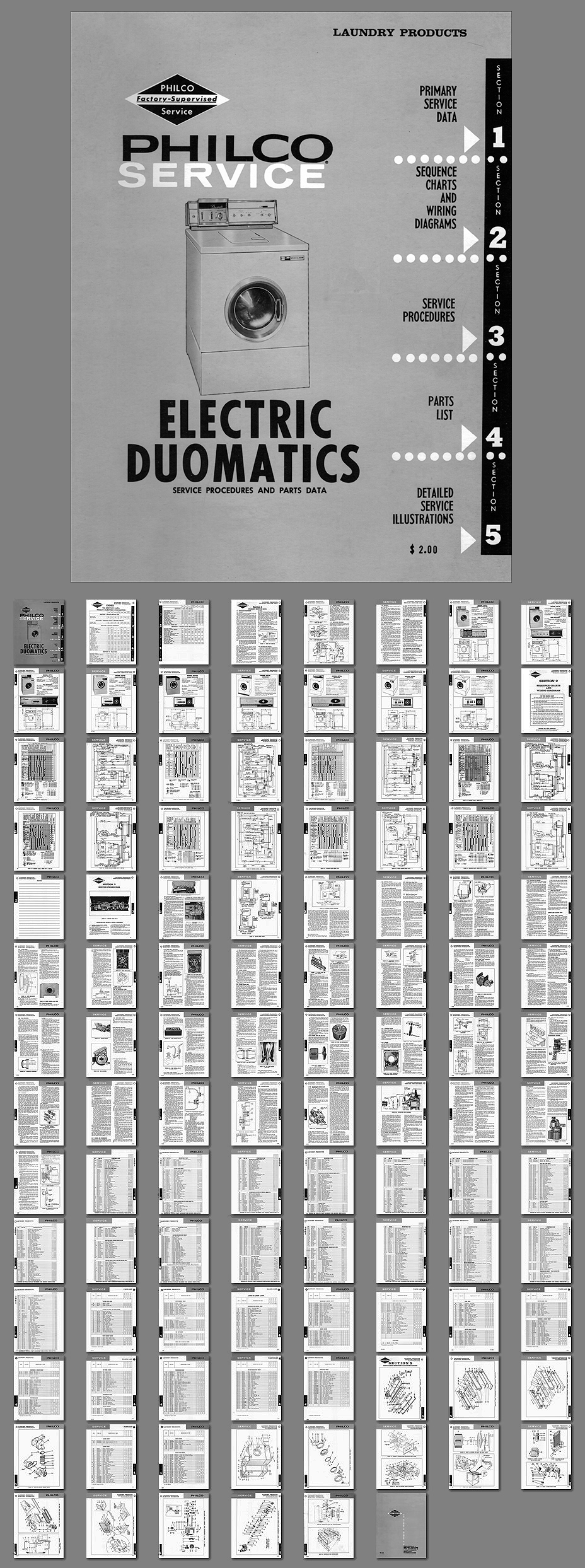

1961 to 1963 Philco Duomatic Combination Washer-Dryer Service Manual


Published by Philco in 1961-- Here is the complete service manual to all Duomatic washer-dryers made between 1961 and 1963. Full specifications and control panel views featured for each machine, along with complete servicing and troubleshooting details.

Models include:
CE716 1961 Top of the line top/rear control panel model.
CE714 1961 Middle of the line top/rear control panel model.
CE712 1961 Bottom of the line top/rear control panel model.
CE710 1961 Front mounted control panel/free-standing model.
CE710U 1961 Front mounted control panel/under-counter model.
CE736 1963 Top of the line top/rear control panel model.
CE734 1963 Bottom of the line top/rear control panel model.
CE730 1963 Front mounted control panel/free-standing model.
CE730U 1963 Front mounted control panel/under-counter model.

Number of Pages: 111
File Size: 69mb
Download Fee: $7.99

  Add 1961 to 1963 Philco Duomatic Combination Washer-Dryer Service Manual to cart
