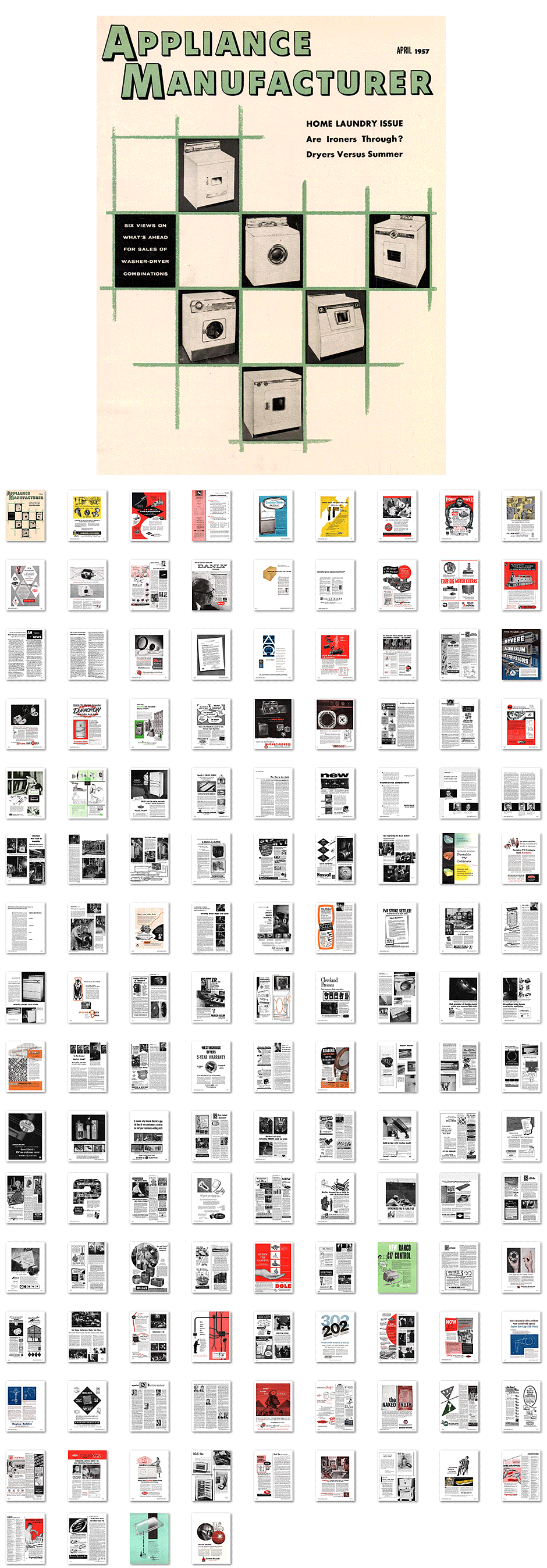

Appliance Manufacturer Magazine - April 1957


Published by Appliance Manufacturer in 1957-- Appliance Manufacturer is a fun magazine to read for any collector or enthusiast of vintage appliances, electronics and other vintage home products. This highly entertaining magazine covered the design and manufacturing areas of Major Appliances, Small Appliances, Small Electrics, Radios, Televisions and other electric home products from the mid-20th century.

Index of the April 1957 Home Laundry Issue


On The Cover:
The six combination washer-dryer units being produced and marketed by appliance manufacturers are shown on this month’s cover. These products are the keynote for the discussion of their potential by the manufacturers — Easy, General Electric, Hotpoint, Westinghouse, Philco, Whirlpool. All have their own ideas on how much, how soon. The views are on page 43.


Featured Articles:
An Editorial—The Sky Is the Limit
Laundry appliance potentials have never been greater.

Cover Story: What Lies Ahead for Washer-Dryer Combinations. . .
Six men toss out some ideas on how much and how soon.

Maytag's New Look in Washer Assembly Lines
Flexible power—and—free conveyor simplifies handling of Highlander Washers.

How Westinghouse Fabricates Space Mate Dryer Drums
New machines bring both product and production gains.

Imagineering Toward 1965 Is Goal of AHLMA Meeting
To stir thought on materials, production and product.

Dryer Education Program Strives to Smooth Production
Charles Rippe of Hamilton gives answers about effort.

Design of the Month—Norge's Luxury Line Dryer
A look at how the objectives in design were achieved.

Is the Ironer Market Dead?
Ironrite’s Richard Gottlieb offers some candid views.

How Hotpoint Designed the Wonderinse Dispenser
Fabric Softening agent is injected during rinse cycle.

Automatic Gas Range Conference Works Two Ways
Program works for exchange of ideas with the editors.

What's New in Major Appliances and Electric Housewares
A round-up of the latest news in products and design. Products covered:
Air-d-lux Room Cooler,
Airtemp Automobile Air Conditioner,
Frigidaire Food Freezer,
Eureka Vacuum Cleaner,
All Metal Lewyt Vacuum Cleaner,
Trion Air Cleaner.


Monthly Departments:
The Editor's Random Harvest, AM Highlights the News, Calendar of Industry Meetings, A Report from Washington, New Products Showcase, Appliance Manufacturer Notes, News of the Suppliers,
A Peek at the Decision-Makers, New Bulletins, Advertising Index, Jim Dandy Says


Full Page Vintage Ads:
Packard Motors, Lamson and Sessions Hardware, Stemco Thermostats, Philco uses Distinctive Finishes, AMP Wire Connectors, Gaylord Appliance Boxes, Guardian Electric, Fairmont Aluminum, Fiberfil, Danly Preses, Dahlstrom Machinery, Delco Electric Motors, Peters-Dahlton Power Spray Washes, Gear Specialties, Glidden Finishes, Torrington Fan Blades, Alan Wood Steel for Electrolux Vacuums, BF Goodrich Rivets, Revere Aluminum, Tinnerman Speed Nuts, Pittsburgh Paints, Waste King uses International Paper, DuPont, Speed Queen uses McQuay-Norris ignition, Wean Equipment, Dot Escutcheon Fasteners, Amerock Hardware, Philco uses Dulux Enamel, Essex Electric Cords, Telechron Timer Motors, Link-Lock Fasteners, Apollo Metal, Copeland Compressors, Garlock Pump Seals, Potter and Brumfield, Allegheny Ludlum, GM Steel tubing by Rochester Products, Parker-Kalon Fasteners, Cleveland Presses, American Lava Die Press, Reading Tube, SPS Hardware, Incoloy Mesh Screens, Dupont Freon, Fasco Appliance Motors, Southern Scew, Taylor-Winfield, Inland Steel, Stuco Appliance Motors, Wallace Tool and Die, Dole Water Valves, Ranco Air Conditioning Controls, Morain Products Div of GM, Packard Wiring, Crucible Steel, Ransburg Porcelain Enamel, Daton Rubber Solves Three Problems in: Automatic Clothes Dryer, Home Workshop Tool, Automatic Clothes Washer, Miro-bright Coating Products, Driver-Harries Electric Heating Elements, Weirton Steel, DuPont Lucite, Glidden Paint on Maytag Washers and Dryers, Clearing Press, Ohio Knife, Lancaster Glass used in Westinghouse Laundromat Washers and Dryers, Sherwin-Williams Industrial Finishes.

Double Full Page Vintage Ad Spreads:
Union Boxes, Reynolds Alumnium Portable TV Cabinets, Doehler-Jarvis Cameras, General Electric non-Synchronous Control.

Other Ads:
General Industries, Dialight Appliance Indicators, Circle F Appliance Switches, Hassall Hardware, Aerovox Capacitor Protectors, Electric Cordsets, Hart Thermostats, National Lock, Dreis and Krump, Wisconsin Porcelain, Westinghouse Appliance Motors, Thermodisc Thermostats, Eaton Hose Clamps, Louthan Electrical Porcelains, Meyercord Nameplate Decals, Corbin Water Clamps, Dollin Nameplates, Alpha-Molykote helps Vacuum Cleaner Caps, Stewart Warner Meat Thermometers, Phalo Plastics, Bently Harris Fiberglas Oven Seals, Haydon Switches, Barber-Coleman Small Motors, Lux Timers, Pyramid Washing Machine/Range Trim Rings.




Number of Pages: 140
File Size: 61mb
Download Fee: $12.99

  Add Appliance Manufacturer Magazine - April 1957 to cart
Please note that all publications presented here at Automatic Ephemera are on average between 35 and 85 years old. This information is presented as a educational/historical reference on vintage products of the past. Any trademarks or brand names appearing on this site are for nominative use to accurately describe the content contained in these publications. The associated trademarks are the sole property of their registered owners as there is no affiliation between Automatic Ephemera and these companies. No connection to or endorsement by the trademark owners is to be construed.
