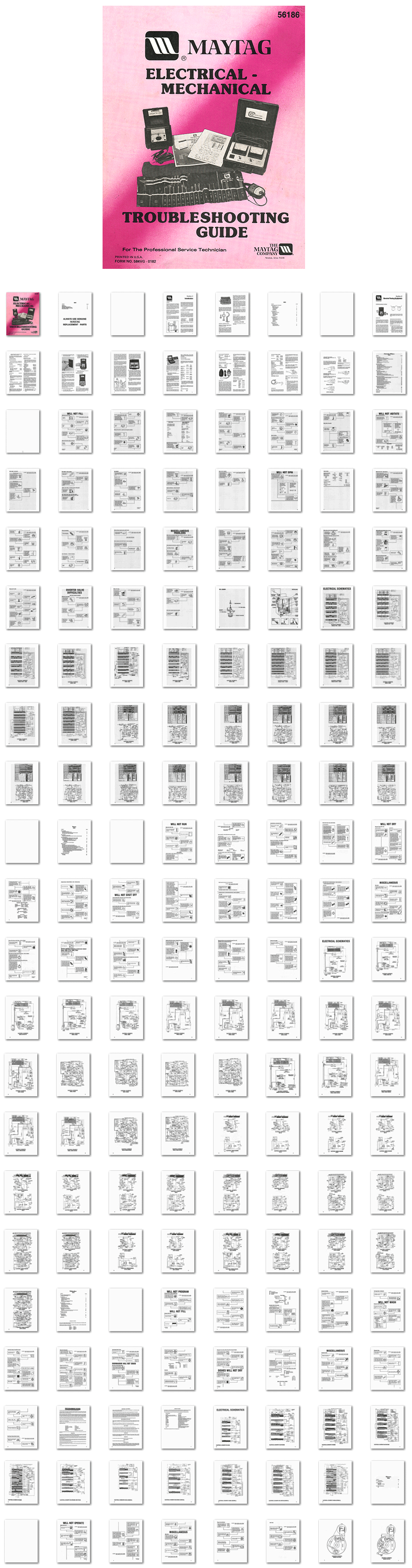

Maytag Electrical and Mechanical Troubleshooting Guide


Published by Maytag in 1986-- This is an indispensable publication for any collector of vintage Maytag automatic washers, dryers, dishwashers and disposers. It contains in-depth charts, diagrams and troubleshooting steps to figure out what needs to be fixed when something goes wrong with you Maytag machine. It was published in 1986 but the general troubleshooting information covers most models from the 1960's and 1980's even if the model isn't specifically mentioned.

Sections include the following:

Introduction:, MAYTAG APPLIANCE TEST METER, General Use, Resistance Measurements, Resistance Valve Charts Automatic Washers Automatic Dryers Dishwashers, Voltage Checks, VOLT-WATTMETER, General Use, Readings Over 2000 Watts, Wattage Charts Automatic Washers Automatic Dryers Dishwashers Disposers, CLAMP-ON AMMETER, General Use, Amperage Charts Automatic Washers Automatic Dryers Dishwashers Disposers, Voltage Checks, MOTOR TEST CORD, General Use Dryer Motor Checks Washer Motor Checks Dishwasher Motor Checks, , , , ,

Automatic Washers:, WILL NOT FILL, Washer Will Not Fill or Spin, Washer Will Not Fill For Wash, But Will Spin, Washer Will Not Fill for a Specific Water Temperature Selection, Washer Will Not Fill For Rinse Cycle, No Cool-Down Fill, Hot and Cold Water Temperatures Reversed Slow Fill, Warm Water Temperature Too Cool or Too Hot Washer Overflows, WILL NOT AGITATE, Fills Okay, Motor Will Not Run Won't Agitate - Burns Belt Won't Agitate - Motor is Running, Agitate a Few Minutes - Then Stops and Starts Filling Again Won't Agitate Delicate Cycle - Fabric-Matic Models Slow Agitation, Agitates Continuously - Timer Won't Advance Spins at Start of Agitation, WILL NOT SPIN, Will Agitate, But Will Not Spin, Washer Tries to Spin - Motor Shuts Off, Slow Pump Out, Slow Spin Acceleration, Spin Continuously - Timer Won't Advance, Washer Continues to Agitate and Spin With Lid Raised, Washer Continues to Spin With Lid Raised - Brake is Not Working, MISCELLANEOUS PROBLEMS, Washer Spins Out Properly on Damp Dry But Advances to Next Cycle - Agitate Dry, Timer Advances Into Next Cycle - Washer Full of Water, Washer Noisy During Agitation, Suction Noise During Agitation, Washer Noisy at Beginning or During Spin, Buzzing Noise During Fill, Washer Noisy at End of Spin (Squealing), Buzzing Noise at End of Cycle - Timer in Off Position Agitator Will Not Stay in Place (Flys Off Agitator Post), Water Pipes Vibrating When Water Shuts Off Clothes Getting Caught Between Tubs or in Pump Clothes Not Coming Clean Washer Goes Off Balance Too Easily, DIVERTER VALVE DIFFICULTIES Washer Won't Save Water Washer Won't Return Water Diverter Valve Noisy When Activated, OIL LEAKS WATER LEAKS, SCHEMATICS models: A106, A107, A108, A207, A208, A308, A408, A608, A806, plus all S Suds-Saver Models.

Dryers:, WILL NOT RUN, Dryer Won't Start or Run, Drive Motor Runs - Drum Won't Turn, Motor Runs a Few Minutes - Motor Overload Protector Opens, Dryer Blows Fuses or Trips Circuit Breaker, WILL NOT DRY, Dryer Won't Heat (Motor Runs), Improper Drying - Clothes Wrinkled, Harsh or Takes Too Long to Dry Clothes, WILL NOT SHUTOFF, Time Dry Models DE91, D106, D107, D110, D210and D308 Auto Dry Models D309, D408, D409, D410, D510 and D610 Won't Shut Off on Air Fluff (D510), Electronic Control Dryers D608, D710, D808 and D810 Dryer Won't Shut Off - Solenoid Never Energizes D608, D808 D710, D810, Dryer Won't Shut Off - Solenoid Energizes, MISCELLANEOUS, Dryer Noisy, Buzzer Too Loud or Too Soft (Auto Dry Models), Buzzer Will Not Buzz at End of Cycle (Auto Dry Models), Buzzer Stays on Too Long or Goes Off Too Quickly (Auto Dry Models), Buzzer Will Not Buzz During Press Care Setting (D610 Dryers), Miscellaneous Pertaining to Electronic Control Dryers (D608, D710, D808, D810) Dryer Shuts Off Before Clothes Are Dry (All Models), Timer Will Not Advance During Permanent Press With Adjustable Press Care (D810) Repeating Chime Does Not Ring - Permanent Press Cycle on All Models Repeating Chime Does Not Sound During Permanent Press With Adjustable Press Care Setting (D810 Dryers), Chime Not Loud Enough Clothes Not Dry Enough, ELECTRICAL SCHEMATICS, "08" Models, "10" Models.


Dishwashers:, WILL NOT PROGRAM (WU900 ONLY), Dishwasher Won't Program, WILL NOT FILL, Dishwasher Won't Fill Dishwasher Won't Fill For Rinse Hot Water Temperature Too Cool Dishwasher Overflows Slow Fill, Water Won't Stay in Dishwasher (Siphoning), Not Enough Water in Dishwasher, WILL NOT WASH, Dishwasher Won't Circulate (Wash), Timer Won't Advance From Wash to Drain, Poor Circulation, Dishes Not Coming Clean, Detergent Cup Will Not Trip, Rinse Dispenser Won't Work, DISHWASHER WILL NOT DRAIN, Won't Drain, Will Circulate Properly Slow Drain, Dishwasher Tries to Drain, Motor Shuts Off on Overload Protector Dishwasher Won't Advance From Drain to Off, DISHES WILL NOT DRY, Dishwasher Won't Dry, MISCELLANEOUS, Dishwasher Leaks Dishwasher Noisy Water Pipes Vibrating, SCHEMATICS.

Disposers: WILL NOT OPERATE, Disposer will not run, MISCELLANEOUS, Water Leaks, Disposer Noisy - Vibration Won't grind, ELECTRICAL SCHEMATICS, FC, FB.

Number of Pages: 173
File Size: 98mb
Download Fee: $11.76

  Add Maytag Electrical and Mechanical Troubleshooting Guide to cart
Please note that all publications presented here at Automatic Ephemera are on average between 35 and 85 years old. This information is presented as a educational/historical reference on vintage products of the past. Any trademarks or brand names appearing on this site are for nominative use to accurately describe the content contained in these publications. The associated trademarks are the sole property of their registered owners as there is no affiliation between Automatic Ephemera and these companies. No connection to or endorsement by the trademark owners is to be construed.


Review Selections & Checkout
