1959 Frigidaire Dryer Service Tech-Talk (continued)
Page 21 of 32     First Page   < Back (Page 20)    > Next (Page 22)        ...     Last (Page 32)
You are viewing a low-resolution preview. Available here is the high-res/32 page PDF version of this document ($2.64), most printers can output this nearly identically to the original document.



Automated Summary of Text on this Page:
STRIKE
INSIDE DOOR PANEL
PORT PLATE AND SEAL
B472
HINGE ASSEMBLY AND
MOUNTING PARTS
OUTSIDE DOOR PANEL

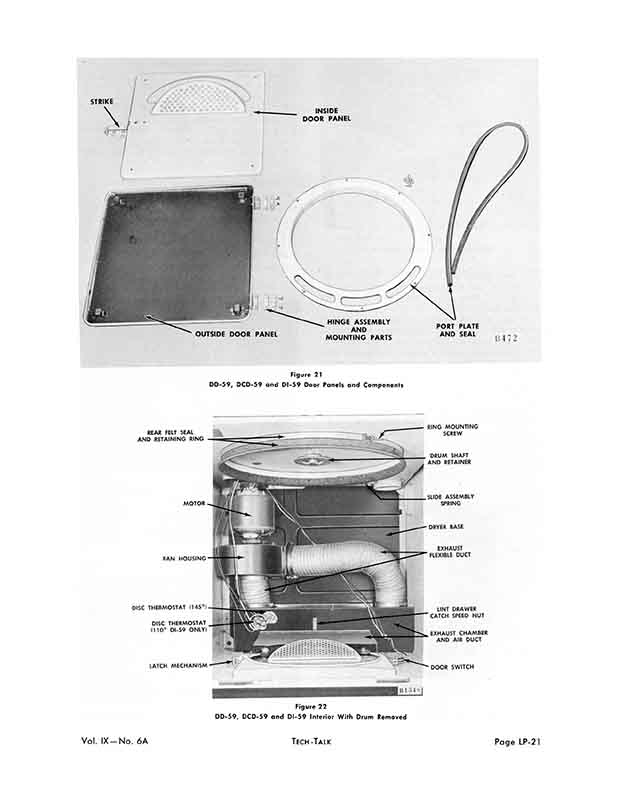

Figure 21

DD-59, DCD-59 and DI-59 Door Panels and Components

MOTOR
HIDE ASSEMBLY SPRING
FAN HOUSING
EXHAUST FLEXIBLE DUCT
DRUM SHAFT \ND RETAINER
REAR FELT SEAL AND RETAINING RING
RING MOUNTING SCREW
LINT DRAWER CATCH SPEED NUT
EXHAUST CHAMBER AND AIR DUCT
DOOR SWITCH
DISC THERMOSTAT (145°)
DISC THERMOSTAT (110° DI-59 ONLY)

Figure 22

DD-59, DCD-59 and DI-59 Interior With Drum Removed



Page 21 of 32
