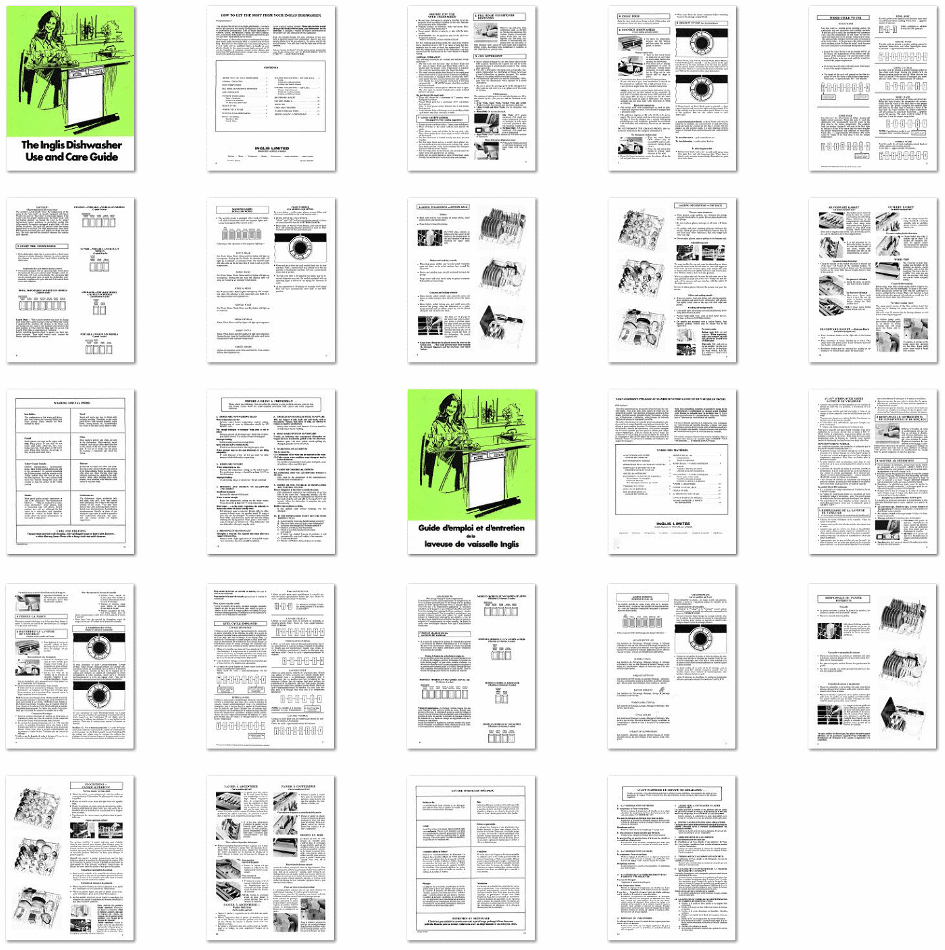

The Inglis Dishwasher Use and Care Guide


Published by Inglis in 1974-- Here is an owners manual for Royal 500 Inglis Dishwasher made by Whirlpool. 12 pages are in English and 12 in French.

Sections include:
BEFORE YOU USE YOUR DISHWASHER

NORMAL OPERATION

LOAD DISHWASHER

FILL RINSE CONDITIONER DISPENSER
ADD DETERGENT

CONNECT DISHWASHER
Water Connection
Electrical Connection
To Disconnect Dishwasher
SELECT CYCLE
WHICH CYCLE TO USE

LOADING SUGGESTIONS - BOTTOM RACK
Dishes
Dishes and Cooking Utensils
Cooking and Baking Utensils

LOADING SUGGESTIONS-TOP RACK
Glasses, Cups, Stemware
Dishes
Cooking and Baking Utensils
SILVERWARE BASKET
CUTLERY BASKET
WOOD TOP

CARE AND CLEANING

WASHING SPECIAL ITEMS

STARTING YOUR DISHWASHER ROYAL 100 MODEL
Sequence Lights
Cancel Drain

BEFORE CALLING A SERVICEMAN

Number of Pages: 24
File Size: 19mb
Download Fee: $4.99

  Add The Inglis Dishwasher Use and Care Guide to cart
Please note that all publications presented here at Automatic Ephemera are on average between 35 and 85 years old. This information is presented as a educational/historical reference on vintage products of the past. Any trademarks or brand names appearing on this site are for nominative use to accurately describe the content contained in these publications. The associated trademarks are the sole property of their registered owners as there is no affiliation between Automatic Ephemera and these companies. No connection to or endorsement by the trademark owners is to be construed.


Review Selections & Checkout
