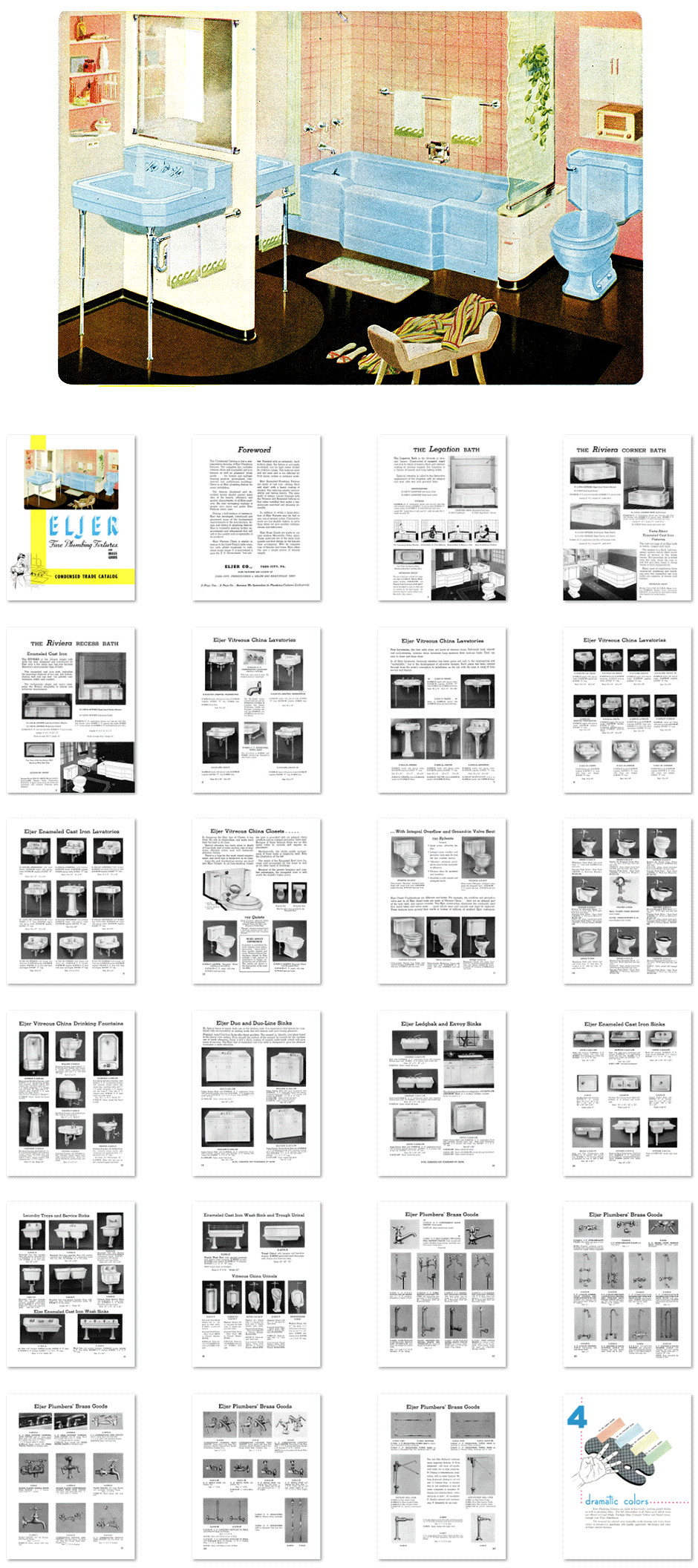

Eljer Fine Plumbing Fixtures and Brass Goods Catalog


Published by Eljer in 1951-- Here is the complete condensed trade catalog highlighting the Eljer line of plumbing products in the early 1950's.

Products include:
The Legation Bathtubs
Riviera Corner Bathtubs
Riviera Recess Bathtubs
Vitreous China Lavatories/Bathroom Sinks
Enameled Cast Iron Lavatories/Bathroom Sinks
Vitreous China Closets/Toilets
Vitreous China Drinking Fountains
Duo and Duo-Line Sinks
Ledgbak and Envoy Sinks
Enameled Cast Iron Sinks
Laundry Trays and Service Sinks
Enameled Cast Iron Wash Sink and Trough Urinals
Plumbers' Brass Goods


Number of Pages: 24
File Size: 23mb
Download Fee: $3.99

  Add Eljer Fine Plumbing Fixtures and Brass Goods Catalog to cart
Please note that all publications presented here at Automatic Ephemera are on average between 35 and 85 years old. This information is presented as a educational/historical reference on vintage products of the past. Any trademarks or brand names appearing on this site are for nominative use to accurately describe the content contained in these publications. The associated trademarks are the sole property of their registered owners as there is no affiliation between Automatic Ephemera and these companies. No connection to or endorsement by the trademark owners is to be construed.


Review Selections & Checkout
