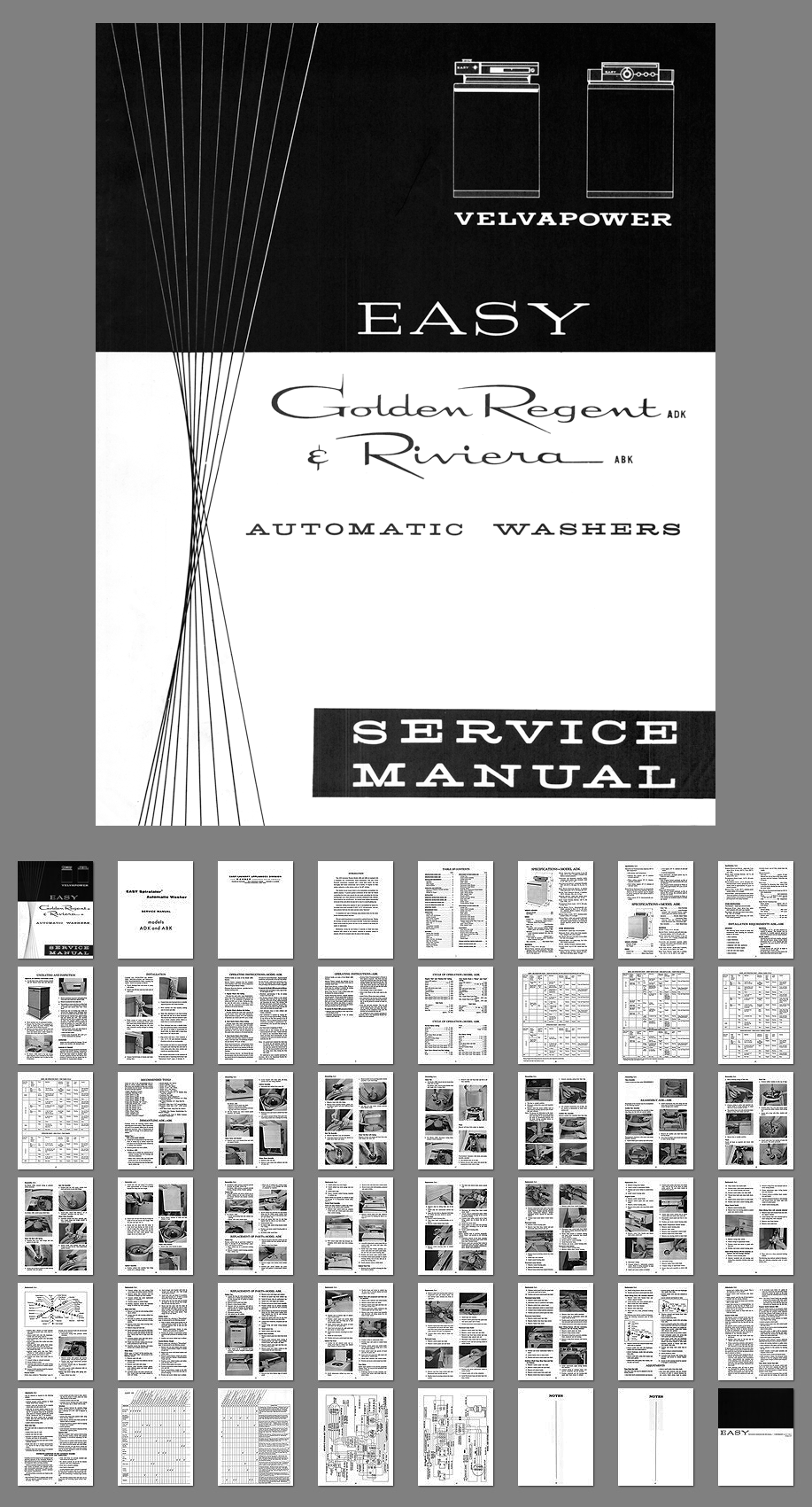

1959 Easy Automatic Washer Service Manual


Published by Easy in 1959-- Here is the service manual introducing the very first Velva-Power Easy Washers. The 1959 Easy Automatic Washer series Golden Regent and Riviera. Models ADK and ABK.

Sections include full specifications, Installation, Operating Instructions, Cycle of Operation Charts, Tools, Dismantling, Reassembly, Replacement of Parts, Adjustment, Troubleshooting Charts and Wiring Diagrams/Schematics.

The 1959 Automatic Washers Models ADK and ABK are equipped with a completely new, revolutionized, sealed transmission. This new "Velva Powered" transmission (equipped with a direct drive motor) has been thoroughly field tested commercially and in homes. It requires no belts, pulleys, solenoids, or other devices, such as "cut off" switches.

The limited out-put torque clutch in the transmission accomplishes two definite purposes. It permits gradual acceleration of the wash tub without overloading the motor and controls the spin speed, preventing the tub from reaching high r.p.m. when subjected to extremely unbalanced loads, eliminating the need for any cut-off device. An internal brake applied automatically at the end of the cycle allows the spin tub to come to a smooth gliding stop.

Automatic shifting from agitation to spin is accomplished by means of a two-speed, heavy duty, reversible, :Y3 H.P., 115 V., 60 cycle motor. An overload protector built into the motor prevents motor "burn-out."

A completely new type of discharge pump directly driven by the motor further eliminates pulleys and belts.


Number of Pages: 48
File Size: 38mb
Download Fee: $12.99

  Add 1959 Easy Automatic Washer Service Manual to cart
