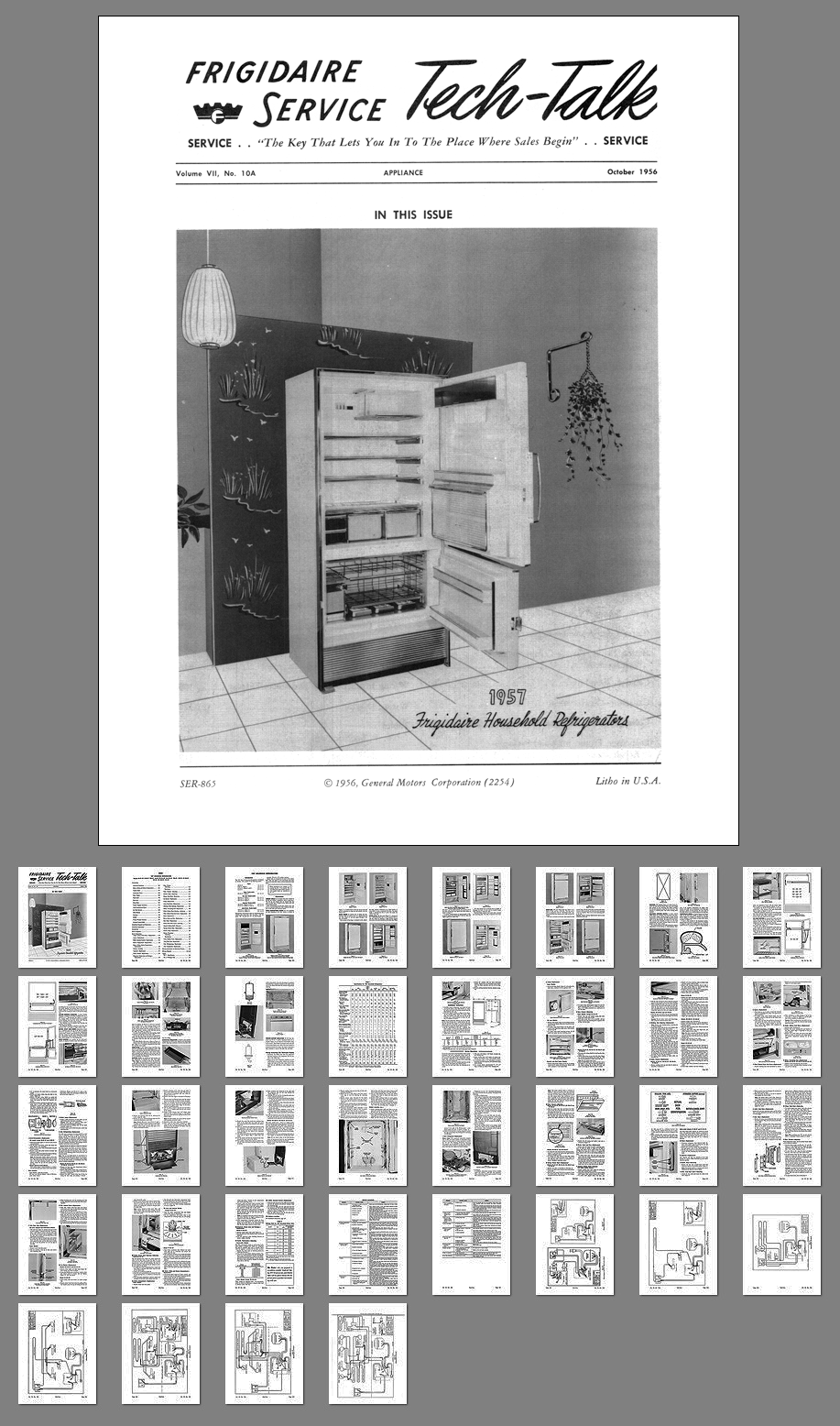

1957 Frigidaire Refrigerator Service Manual


Published by Frigidaire in 1957-- Here is the comprehensive service manual to repairing and restoring all 1957 Frigidaire household refrigerators.

Models covered:

Super
SA-81-57
S-80-57
S-104-57
S-124-57

Super Cycla-matic
FS-101-57

De Luxe Cycla-matic
FD-101-57
FD-102-57
FD-120-57

Imperial Cycla-matic
FI-120-57
FI-121-57

Cold-Pantry Cycla-matic
CP-123-57
CP-141-5

Number of Pages: 60
File Size: 36mb
Download Fee: $7.99

  Add 1957 Frigidaire Refrigerator Service Manual to cart
Please note that all publications presented here at Automatic Ephemera are on average between 35 and 85 years old. This information is presented as a educational/historical reference on vintage products of the past. Any trademarks or brand names appearing on this site are for nominative use to accurately describe the content contained in these publications. The associated trademarks are the sole property of their registered owners as there is no affiliation between Automatic Ephemera and these companies. No connection to or endorsement by the trademark owners is to be construed.
