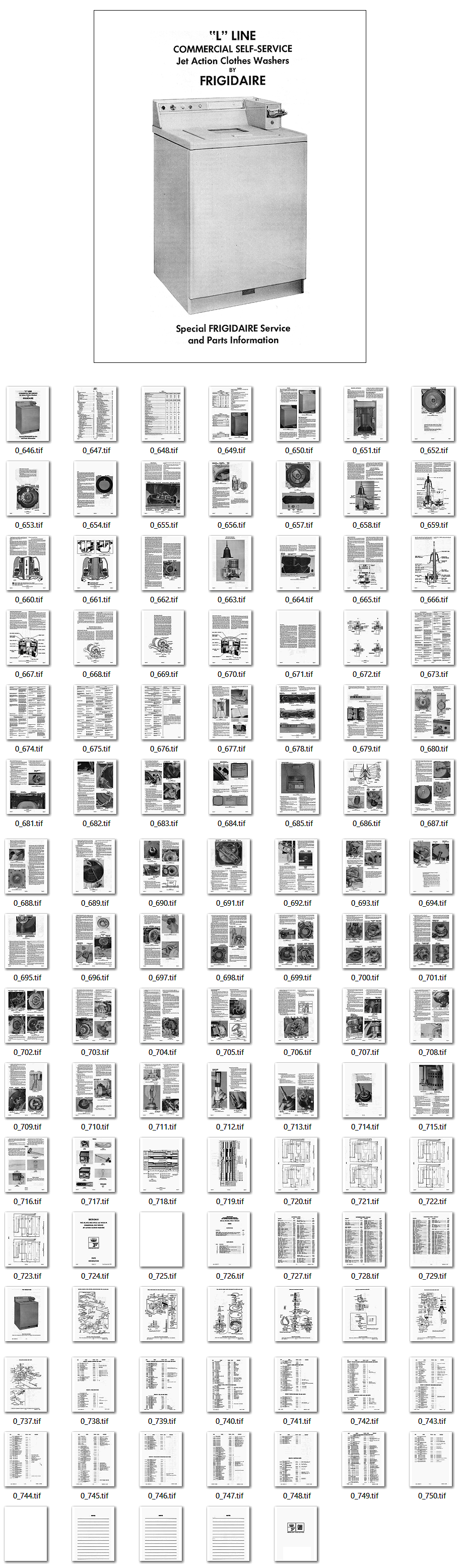

1966 Frigidaire Coin-Operated Washer Service and Parts Manual


Published by Frigidaire in 1966-- Here is the service and parts manual to the first square window Frigidaire commercial washer model WCL with the Super Duty transmission (1010rpm spin). Also covers the very first coin-operated Rollermatic washer, models WCAL, WCAL-M and WCAL-MLP.

Sections include, Cycle of Operation Chart, Specifications, Installation, Service Diagnosis, Service Operations, Complete Mechanism rebuilding instructions, Tools, etc. Full parts list included at the end for all models.

Number of Pages: 110
File Size: 104mb
Download Fee: $12.48

  Add 1966 Frigidaire Coin-Operated Washer Service and Parts Manual to cart
