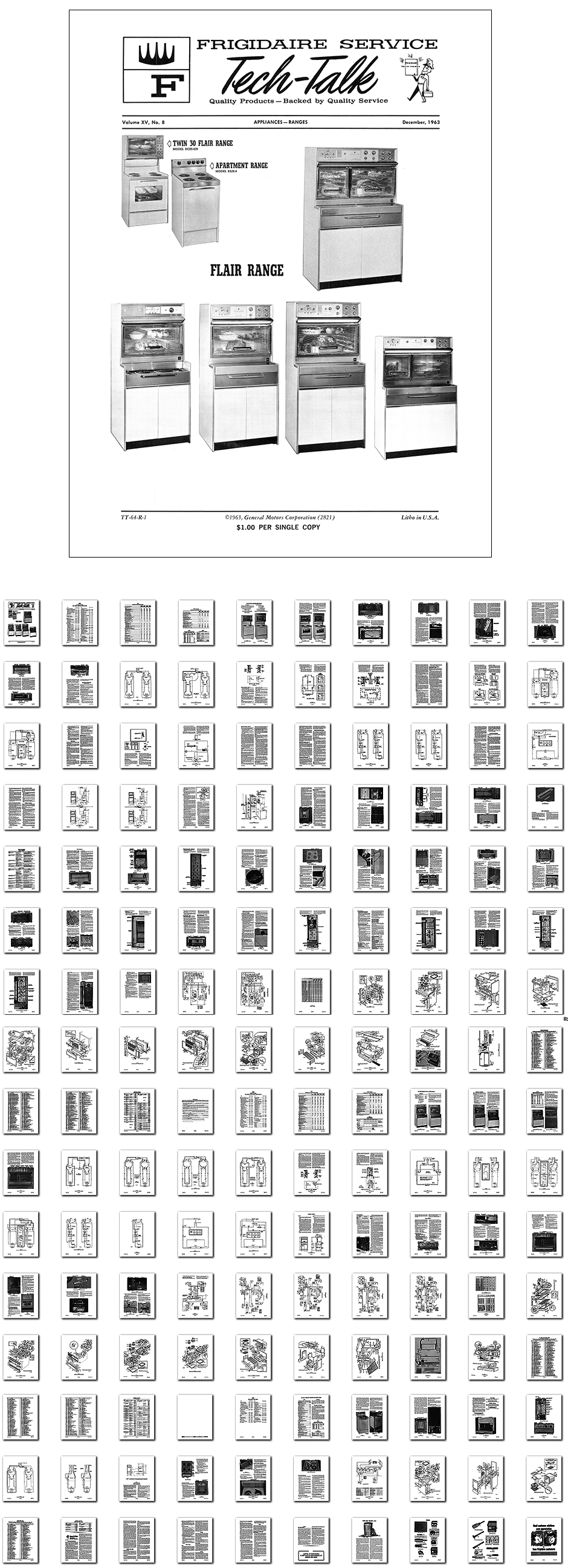

1964 Frigidaire Flair Range Tech-Talk Service Manual


Published by Frigidaire in 1963-- Very comprehensive service manual for all 1963 and 1964 Frigidaire Flair Models: RDH-630, RCDH-630; RCIH-635, RCDH-640, RCIH-645

Also included are Twin 30 Ranges:
RCDH-637, RCDH-637V, RCIH-639, RCIH-639V

Apartment Range:
RAH-4


Looking for a Use and Care Guide for Frigidaire Flair Ranges? Please see this manual: Frigidaire Flair Owners Manual

Looking for parts information for Frigidaire ranges? Please see Please see this manual: Vintage Frigidaire Appliance Parts Reference Catalog

Number of Pages: 160
File Size: 128mb
Download Fee: $9.49

  Add 1964 Frigidaire Flair Range Tech-Talk Service Manual to cart
