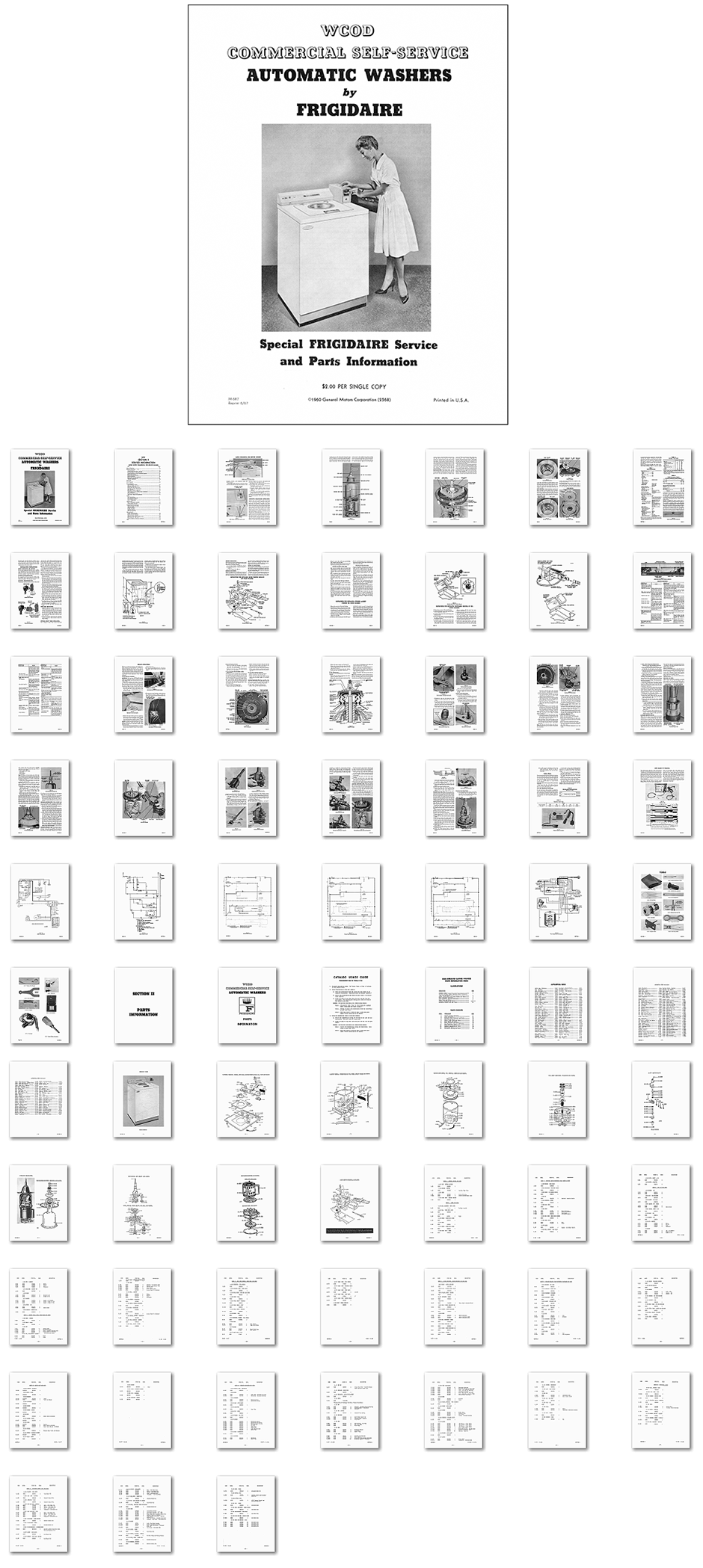

1961 Frigidaire Coin-Operated Washer Service and Parts Manual


Published by Frigidaire in 1961-- Here is the service and parts manual to the second design of commercial/coin-operated Frigidaire washer for Laundromats and Coin-Laundry Facilities.

This model is the very first time a Unimatic transmission was placed into a 27" washer.

Sections include, Cycle of Operation Chart, Specifications, Installation, Service Diagnosis, Service Operations, Complete Unimatic Mechanism rebuilding instructions, Tools, etc.

Number of Pages: 73
File Size: 39mb
Download Fee: $4.99

  Add 1961 Frigidaire Coin-Operated Washer Service and Parts Manual to cart
