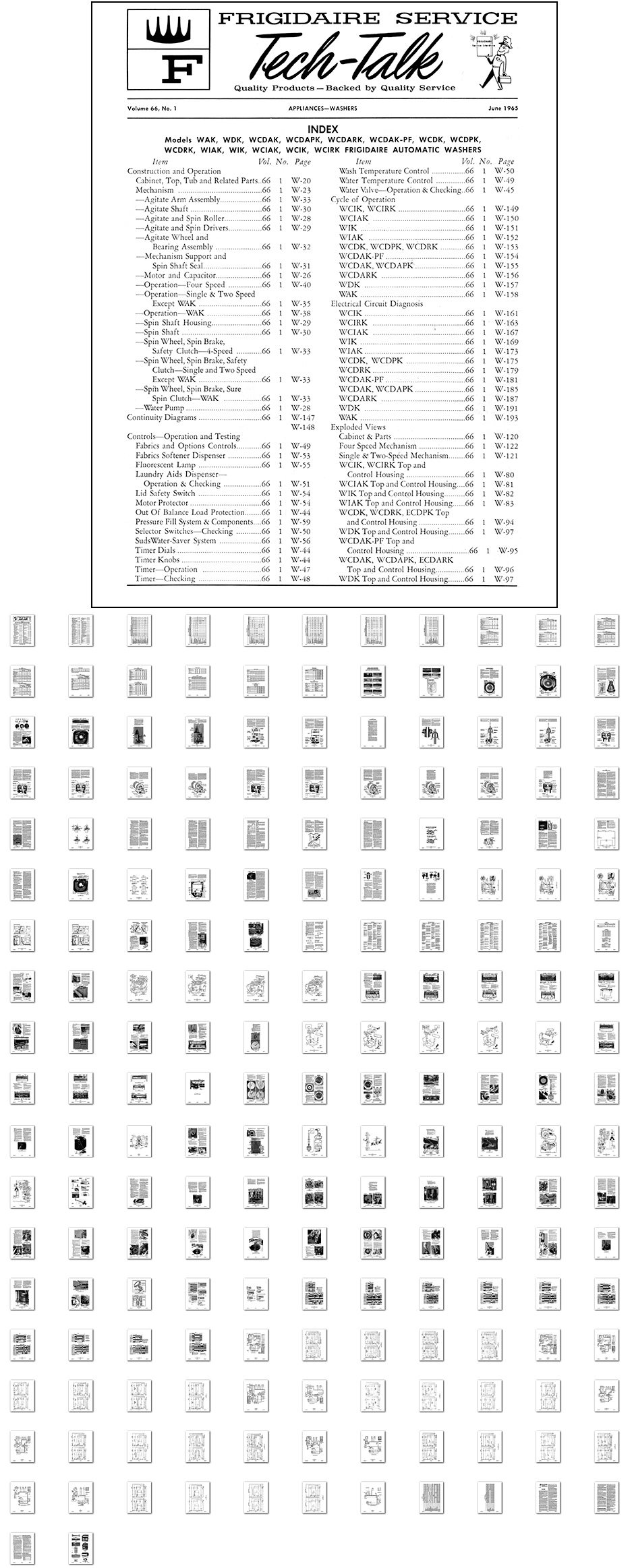

1966 Frigidaire Automatic Washer Tech-Talk Service Manual


Published by Frigidaire in 1966-- Here is the comprehensive service manual to all 1966 Frigidaire Roller-Matic automatic washing machines.

Models include WAK, WDK, WCDAK, WCDAPK, WCDARK, WCDAK-PF, WCKD, WCDPK, WCDRK, WIAK, WIK, WCIAK, WCIK, WCIRK.

Includes complete in-depth control panel views and specifications for all models, cycle charts, service instructions and complete Roller-matic transmission rebuilding instructions, recommended service tools and Home-Ec Talk.

Please note this manual is 200 pages/121 mb in size. It is quite large and will take several minutes to download with a broadband connection.

Number of Pages: 200
File Size: 121mb
Download Fee: $14.52

  Add 1966 Frigidaire Automatic Washer Tech-Talk Service Manual to cart
