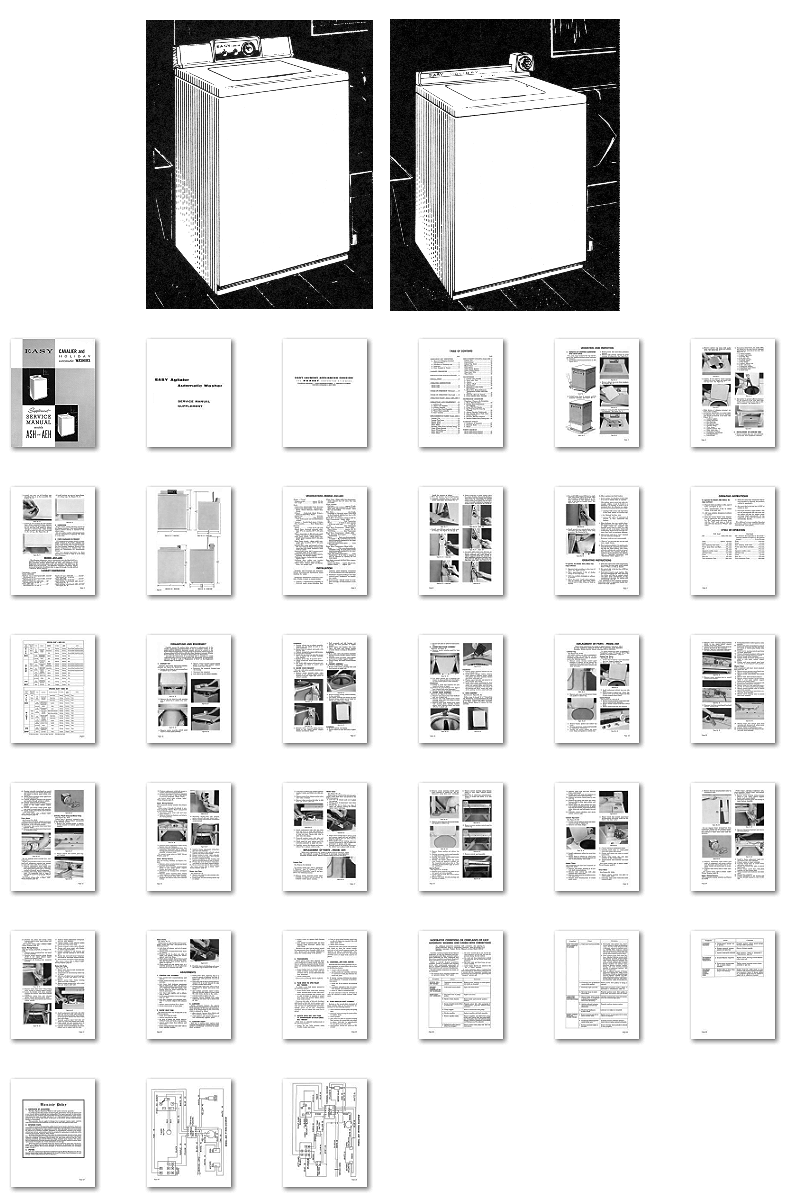

Easy Cavalier and Holiday Automatic Washer Service Manual Supplement


Published by Easy in 1958-- The complete service manual supplement for Easy Automatic Washers models ASH and AEH.

Sections include:
Uncrating and Inspection,
Cabinet Dimensions,
Specifications,
Installation,
Cycle of Operation Charts for Full and Partial Loads,
Operation Chart,
Dismantling and Reassembly,
Replacement of Parts,
Adjustments,
Inoperative Conditions,
Warranty Policy and
Wiring Diagrams.

Number of Pages: 33
File Size: 23mb
Download Fee: $3.99

  Add Easy Cavalier and Holiday Automatic Washer Service Manual Supplement to cart
